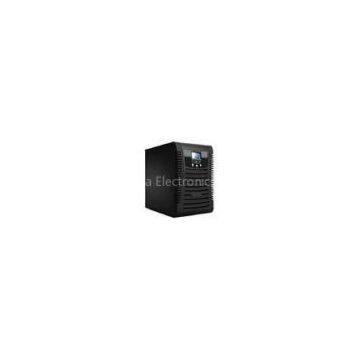

High Frequency Online UPS double conversion 1KVA - 20KVA for bank , server center

Model

HT116K
HT116KL

HT1110K
HT1110KL

HT1115KL

HT1120KL

Rated Power

Power

6kVA/4.2kW

10kVA/7kW

15kVA/10.5kW

20kVA/14kW

Input

Nominal voltage

220VAC

380VAC

Voltage range

176-276VAC

304-478VAC

Frequency range

46-54Hz(default), user adjustable within 40-60Hz

Power factor

0.98

Output

Voltage

220VAC ± 1%

Frequency

50/60Hz± 0.2Hz(line mode), 50/60Hz± 0.2Hz(battery mode)

Waveform

Pure sine wave

Distortion

Less than 2% under linear load

Overload capability

105%-130% for 10 minutes, 130% for 1 minutes

Crest factor

3: 1

Battery

Type

Sealed, maintenance free, lead-acid

Backup time

5 minutes

N/A

Recharge time

8 hours to 90% capacity after full discharging

Bypass

Automatic transfer

Overload time up and UPS failure

Transfer time

0mS

LCD/LED information and audible alarm

Status

Load percentage, battery state, utility state, inverter and bypass state, overload, system fault.

Audible alarm

Bypass mode, battery mode, battery low, overload, fault

Noise

1 meter distance

55dB

60dB
