High Frequency Online UPS 7 kva , 10kva , 20 kva , 220V Power supply / IEC61000-4-2

High Frequency Online UPS 7 kva , 10kva , 20 kva , 220V Power supply / IEC61000-4-2 ? Specifications 1)Power supply
2)Large LCD for Detailed Real Time UPS Status
3)Microprocessor Control
4)N+X Parallel

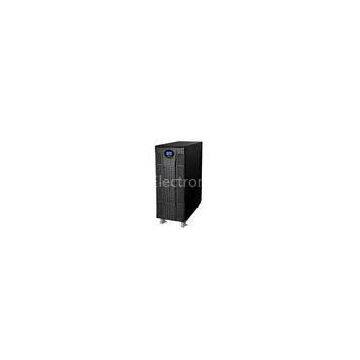

High Frequency Online UPS ( UPS Power System )

HP9116C Series 6-10kva (1Ph in/1Ph out)

HP9316C Series 10-20kva (3Ph in/1Ph out)

Key Features:

1. Large blue back light LCD for detailed Real-time UPS status display.

2. Advanced online pure sine wave power supply system, with bypass repair switch, It can

provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.

3. Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments.

4.?Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.

5.?UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.

6.?N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)

Trendy & Elegant LCD Design for real-time UPS system information:

Back Panel of Online UPS HP9116C 6-10K (1Ph in/1Ph out)

Applications:

Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…

Technical Specifications of Online UPS HP9116C 6-10K (1Ph in/1Ph out)

Model	HP9116C 6-10KVA
6KT	6KT-XL	10KT	10KT-XL
Rated Power	6KVA/4800W	10KVA/8000W
Rated Voltage	220/230/240VAC
Rated Frequency	50/60 Hz
Input
Voltage Range	176~279VAC(±3VAC)
Frequency Range	50HZ:(46~54HZ);60HZ:(56HZ~64HZ)
Power Factor	0.98
Output
Voltage Regulation	220/230/240X (1±2%)VAC
Frequency Regulation	50/60 Hz±0.05Hz
Power factor	0.7/0.8(Optional) Standard 0.7
Voltage distortion	Linear load<3%??? Non-linear load<6%
Overload Capability	110%~150% for 30s change to bypass model,Recover after load normal
Current Crest Ratio	3:1
Transfer time	0ms(AC mode→ Battery mode)
Battery?
DC Voltage	240VDC
Recharge Time	7hrs to
