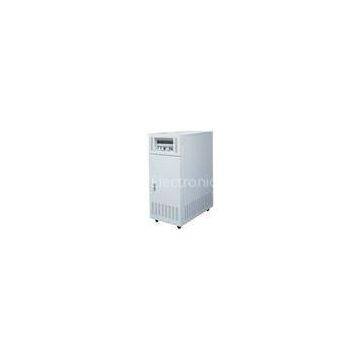

220 / 230V AC 6KVA / 10 kva high frequency onlin ups Short Circuit Protection For office equipment

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Jendia/OEM

Place of Origin

China

Product Description

Delivery Time:15-20days
Certification:CE,ISO9001
220 / 230V AC 6KVA / 10KVA high frequency onlin ups Short Circuit Protection For office equipment ? Quick Details

Place of Origin:	?China (Mainland)	Brand Name:	OEM	Model Number:	HP-C6K
Phase:	Single Phase	Protection:	Short Circuit,Overload	Weight:	94.5kgs
Output Voltage:	220/230VAC	Type:	On-line,High frequency online indoor UPS	Application:	All kinds office equipment
Display:	LED/LCD optional	Waveform:	Pure sine wave	Battery:	With or without internal battery Optional
Transfer time:	Zero	Automatic Bypass:	Integrated	Packing size:	4507051000

Specifications

1. True online double conversion
2. Controlled by DSP+CPU
3. DC start & Auto restart function
4. Adaptable with generator

Features:

1.True on-line double conversion technology
2.Highest reliability and maximum performance for power parallel and redundancy N+X
3.Super wide input voltage range and fully AVR
4.High input power factor
5.Zero transfer time
6.Controlled by fully digitized DSP+CPU
7.Self diagnosis and protection
8.Protection against all types of power problems
9.Miniaturization design,save on invaluable space
10. No add-on CNTL unit required for future? expansion
11.Advanced IGBT power components,which enhancing the overall reliability and conversion efficiency
12.Equipped with Maintenance Bypass Switch to achieve online maintenance
13.Smart local and distance? monitoring capability with RS232 port,and compatible with SNMP
14.LCD display with information available at a glance

Model: HP-	E6022M	? E6022L	E1032M	E1032L	E1034L	E1534L	E2034L
C6022M	C6022L	C1032M	C1032L	C1034L	C1534L	C2034L
Max.capacity(VA/W)	6KVA	6KVA	10KVA	10KVA	10KVA	15KVA	20KVA
Input	Input wiring	Single-phase line two+Ground line	Three-phase line four+Grround line
Voltage range	176--276VAC	304--478VAC
Frequency range	46--54 Hz
Power factor	≥0.95
Output	?Voltage	220VAC±2%
Frequency	Input synchronized the supply frequency(line mode), 50 Hz±0.1%(Battery mode)
Power fac
