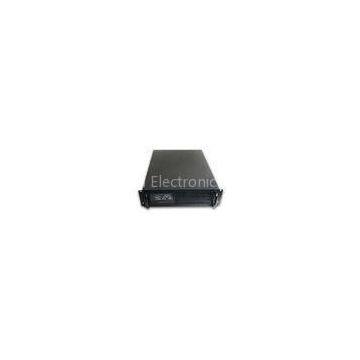

19 inch power supply Rack mount online UPS 1000va 700W / 2kva / 3000va / 6kva / 10kva

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jendia/OEM		Place of Origin	China
Model Number	RM series

Product Description

Delivery Time:15-20days
Certification:CE,ISO9001

19 inch power supply Rack mount online UPS 1000va 700W / 2kva / 3000va / 6kva / 10kva ? Specifications 19inch rack mounted UPS
*Online double conversion
*High input power factor
*Wide input voltage range

1kva/2kva/3kva/6kva/10kva Rack mount online UPS ,LCD/LED display?

Specification:

Rack Mount ? UPS Model	RM1K	RM1KL	RM2K	RM2KL	RM3K	RM3KL	RM6KL
Capacity	1000VA/700W	2000VA/1400W	3000VA/2100W	6KVA/4200W
Input	Voltage	(115~300)VAC	(176~276)VAC
Frequency	46~54Hz/56~64Hz
Output	Voltage	220/230/240(1± 1%)VAC
Frequency	50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz), Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz), Battery Mode: 60Hz (1± 0.2%)
Output Wave Form	Sine Wave
Back-up Time (Minute)	Full Load	≥ 5	Depends on the capacity of the external batteries bank	≥ 9	Depends on the capacity of the external batteries bank	≥ 5	Depends on the capacity of the external batteries bank	Depends on the capacity of the external batteries bank
Half Load	≥ 14	≥ 21	≥ 15
Battery Nominal Voltage	36VDC	96VDC	240VDC
Transfer Time	0ms
Overload Capacity	110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms	105%~130% 10min, over 150%1min
Communications	RS-232+Intelligent Slot
Operating Environment	Temperature	0~40Degree
Humidity	15%~90%
Dimensions(WDH)mm	482.645088	482.6600130
Net Weight(Kg)	16.30	9.10	10.5	11.5	11.50	12.30	19.5

You questions and doubts are warmly welcomed.
