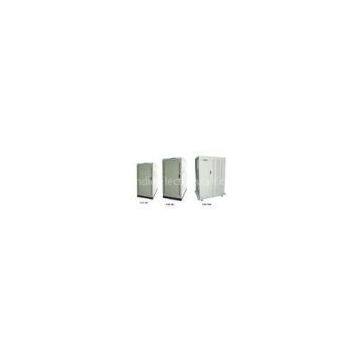

IP20 Low Frequency Online UPS 30KVA 60KVA 120KVA

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Jendia/OEM

Place of Origin

China

Product Description

Delivery Time:15-20days
Certification:CE,ISO9001
IP20 Low Frequency Online UPS 30KVA? 60KVA 120KVA ? Specifications

1.Advanced Battery Management
2.Automatic charging in UPS off mode
3.Smart RS-232 communication port
4.Optional SNMP card

Key Features

1.Three phase in, three phase out
2.Microprocessor control
3.100% unbalance protection design
4.True on-line double conversion design providing all power protection
5.Isolated output
6.Sine wave pulse width modulation
7.IGBT inverter design.
8.Wide Input voltage windows
9.Pure sine wave output less than 3% THD
10.Expandable battery run time
11.Generator compatible
12.Cold start
13.Load/Battery power meter display
14.Overload, on-line, battery status LED/LCD ?

TC? SERIES? TECHNOLOGY SPECS

MODEL	TC10K	TC15K	TC20K	TC30K	TC40K	TC60K	TC80K	TC100K	TC120K
Capacity	10KVA	15KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA	120KVA
Power	8KW	12KW	16KW	24KW	32KW	48KW	64KW	80KW	96KW
Power Factor	0.8
Input	?Phase	3 phase 4 wire and ground
?Voltage Range	380V±20%(3 phase), phase voltage 220V
?Frequency Range	45 – 65Hz
?Rectifier	3 phase 6 pulses, 12 pulses is optional
Output	?Phase	3 phase 4 wire and ground
?Wave form	Pure sine wave
?Crest Factor	3:01
?Rated voltage	380/400/415V optiona+ -1% for static load, 5% forfluctuant load
?Phase voltage setting	200 - 244VAC, pls confirm when order
?Transient response	5%, 10ms
?Frequency	50 / 60 Hz + / - 0.05%
?Total harmonic? ?distortion	< 3%(linear load, < 5%( nonlinear load)
?Short circuit current	Short current for 0.1s (200% current)
?Overload capacity	Overload 125% for 10 Mins, 125%-150% for 1min .automatically resume when load become normal
Battery	?Battery	Maintenance free lead-acid cell
?DC Voltage	384VDC	396VDC
?Max Charge Current	6-30A adjustable
Bypass	?Type	Static state + manual maintenance bypass
?Input Phase	3 phase 4 wire and ground
?Input voltage range	15% - 25% (the front control panel selectable)
?Transfer time	Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency	?Whole unit	>80%
?	?Inverter	91	91	92	92	93	93	95	95	95
?Remote signaling	Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA,Optional parts
?Communication interface	RS232 ( SNMP , modem optional )
?Running temperature	0-
