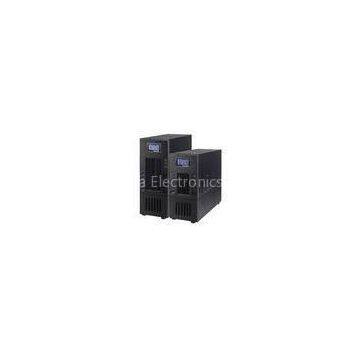

Single Phase Low frequency online ups with transformer security system , 12v lead acid battery

FOB Price

Negotiable / Box

1 Box(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jendia/OEM		Place of Origin	China
Model Number	EH9115

Product Description

Delivery Time:15-20days
Certification:CE,ISO9001

Single Phase Low frequency online ups with transformer security system , 12v lead acid battery ? Specifications True on line ups
IGBT and SPWM
RS232
cold start
N+X parallel redundacy

?reliable, filtered, stabilized and regulated sine wave output (double conversion on-line technology) with filters for atmospheric disturbance suppression
?high reliability: full microprocessor control with no-break static and manual by-pass
?high level diagnostics: states, measurements and alarms - available from the built-in LCD
?power factor correction with sinusoidal input to ensure a low impact on the mains supply (UPS input power factor, close to 1) for the single-phase/single-phase series
?very low noise level <40dB(A)
?low power consumption (“Economy Mode”, Smart Active Mode, and Standby/Off Mode to increase efficiency up to 98%)
?simple to install
?easy to position (integrated castors)
?built-in automatic and manual battery test feature
?auto restart on mains return (programmable - software or from the front panel)

MODEL?	EH9115?2K?	EH9115?3K	EH9115?6K	EH9115?10K	EH9115?15K
CAPACITY	2KVA/1.4KW?	3KVA/2.1KW?	6KVA/4.2KW	10KVA/7KW	15KVA/10.5KW
?INPUT?
Voltage?	Single?phase?220Vac?-20%?+35%
Voltage?Range	-15%?+25%?or?-30%?+?40%?(Input?adding?AVR?function)
Input?Frequency	50Hz?or?60Hz??5%
?OUTPUT?
AC?Voltage?Regulation?	Single?phase?220Vac??5%?(adjustable)
Voltage?regulation?	1%
Frequency?Range??	50Hz?or?60Hz?
Frequency?Stability	?0.5%?(Free?Running)
Power?Factor?	0.7
Transient?Response	?3%?(100%?load?variation)
Overload?Capacity	120%?load?30?seconds,?>150%?constant?power.
Transfer?Time(AC?to?DC)	Zero?
Waveform??	Sinewave?THD?<?3%?at?0-100%?linear?load
Crest?ratio	3:\'1
Efficiency?(AC?to?AC)	>85%
?BATTERY?
Battery?Type	Maintenance?free?lead-acid?batteries
DC?Voltage	48VDC	192VDC
Charger	5A?charger?build?in?,option?10Acharge
?PROTECTION
Battery	Battery?low?shutdown?and?breaker
Overload?protection	125%?30sec.?switch?to?bypass?line?&?automatic?re-transfer
Short?circuit?protection	Current?Limited?and?cut-off?and?fuse?and?breaker
UPS?Fault	Bypass,?load?supplied?from?mains?less?than?2ms.
EMI/EMC	EN50091-2,?CE?Approved
?PHYSICAL
Dimension,?D?X?W?X?H?(mm)	180?x?500?x?540???	480?x?845?x?340
Net?Weight?(kgs)?	58	65	82	105	265
?OPERATING?ENVIRONMENT?
