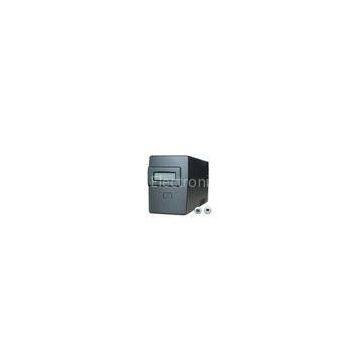

LCD indicator ups with backup high frequency online ups Modified sine wave 600VA / 360W

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jendia/OEM		Place of Origin	China
Model Number	Braver 400/600/800VA LCD

Product Description

Delivery Time:15-20days
Certification:CE,ISO9001

LCD indicator ups with backup high frequency online ups Modified sine wave 600VA / 360W ? Specifications LCD indicator ups with backup high frequency online ups
1.AVR
2.Microprocessor
3.Line interactive ups
4.CE& ROHS & ISO9001

LCD indicator ups with backup high frequency online ups (Braver LCD)

Outstanding Feature

1. Microprocessor control design guarantees high reliability;

2. Equipped with Boost and Buck AVR to Stabilize input voltage;

3. Built-in DC start function enables UPS to be started up without AC power supplied;

4. Auto restart while AC recovery;

5. Compact size, light weight;

6. Provides Modem/Phone line Surge Protection.(Option)

7. Provides Overload protection

Technical Specification

Model&Capacity

MODEL	?	Braver 400 LCD	Braver 600 LCD	Braver 800 LCD
?
CAPACITY	VA/W	400VA/240W	600VA/360W	800VA/480W

INPUT

Phase	Single
Voltage	110/120VAC or 220/230/240VAC
Voltage Range	81-145VAC / 162-290VAC 5%
Frequency	50Hz / 60Hz ( Auto Sensing)
Frequency Range	45~55 Hz / 55~65Hz

OUTPUT

Phase	Single
Voltage(Btt. Mode)	110/120VAC or 220/230/240VAC
Voltage Regulation(Batt. Mode)	±10%
Frequency	50Hz or 60Hz
Frequency Regulation (Batt. Mode)	1 Hz
Output Waveform	Modified Sinewave

Battery

Model	Braver 400 LCD	Braver 600 LCD	Braver 800 LCD
Battery Type & Number	12V/4.5AH x 1pcs	12V/28W x 1pc	12V/34W x 1pc
Back up Time (at a PC load with 15\"monitor)	10 minutes	20 minutes	29 minutes
Recharge Time	8 hours to 90% after complete discharge

Indicator

LCD Indicator with Blue Back Light

The LCD will self turn on when the UPS is functioning including in,off,charging mode and fault mode.

Audible Alarm

Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Fault	Continously sounding
