Home > Products > Heating Temperature Controller > ARDN-50-36 98 Heater Temperature Controller with Water Hot Medium, K- thermocouple for Textile Mach

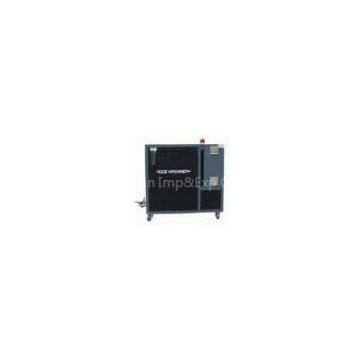

ARDN-50-36 98 Heater Temperature Controller with Water Hot Medium, K- thermocouple for Textile Mach
- T/T L/C D/P D/A
- 7 days
You May Like
-
Custom No-fuse Breaker Heater Temperature Controller for Hot Rolling Machine, Printing Machines
-
Heat Cool Steam Combination RHCM Injection Molding Temperature Controller / Plastic Mold Temperature
-
Heating / Cooling Cycle Steam Combination Injection Molding Temperature Controller Equipment
-
Industrial Rapid Heating / Cooling Cycle Injection Molding Temperature Controller Units for Coking E
-
Industrial High-gloss Rapid Heating / Cooling Injection Molding Temperature Controller Units
-
OEM Industrial Heating / Cooling Cycle RHCM Injection Molding Temperature Controller For Bakery Equi
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | ARDN-50-36 |
Product Description
Certification:CE & ISO9001:2000
?ARDN-50-36 98℃ Heater Temperature Controller with Water Hot Medium, K- thermocouple for Textile Machinery
?
? ? ? ?ARDN-50-36 Mold Temperature Control Units(MTC) are specially custom-designed for the temperature control of Rubber & Plastic industry. This series are highly customizable, has special forced cooling function with high-strength cooling capacity. ARDN-50-36 can offer the temperature range?from?15°C?to?98 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
ARDN-50-36 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
water |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
98℃ |
|
|
7 |
Min. temperature |
15℃ |
|
|
8 |
heating power |
36KW(adjustable) |
|
|
9 |
Pump |
model |
CDL16-3 |
|
power |
3.0KW |
||
|
lift |
37M |
||
|
flow |
14M3/hr |
||
|
10 |
heating method |
Direct heating(Indirect cooling) |
|
|
11 |
Pipeline |
hot medium inlet/outlet |
DN32(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
12 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
13 |
Frame Size |
L*W*H(mm) |
1150*420*1100(without caster) |
|
14 |
Weight |
