Custom 3N-380-50HZ 15C to 98 C Heater Temperature Controller ARD-75-80 For Boring Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AODE		Place of Origin	China
Model Number	ARD-75-80

Product Description

Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000

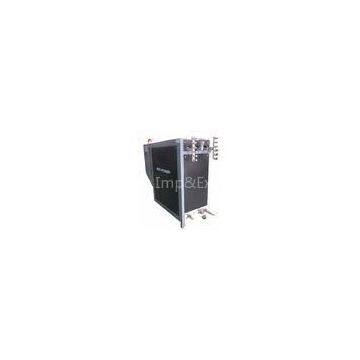

?Custom 3N-380-50HZ 15°C to 98 °C Heater Temperature Controller ARD-75-80 For Boring Machine
?

? ? ? ?ARD-75-80 Mold Temperature Control Units(MTC) are specially custom-designed for the temperature control of Rubber & Plastic industry. This series are highly customizable, has special forced cooling function with high-strength cooling capacity. ARD-75-80 can offer the temperature range?from?15°C?to?98 °C.

SAFETY PROTECTIONS:

No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.

SPECIFICATION DETAILS:

No.	Part	Specification	Data
1		model	ARD-75-80
2		power supply	3N-380-50HZ
3		Hot medium	water
4		control mode	PC board Self - optimized microprocessor
5		accuracy of temp. control	PID±1℃
6		Max. temperature	98℃
7		Min. temperature	25℃
8		heating power	80KW(adjustable)
9	Pump	model	CDL20-4
power	5.5KW
lift	49M
flow	18M3/hr
10		heating method	Direct heating(Indirect cooling)
11	Pipeline	hot medium inlet/outlet	DN50(adjustable)
cooling water inlet/outlet	DN15(adjustable)
drain oil port	DN15(adjustable)
12	Temp. Controller	model	P6100(WEST)
modulating action	Dual PID control of heating & cooling
Temp. interaction stick	K- thermocouple
display status	Respectively display set point & real point
output select	SSR output
13	Frame Size	LWH(mm)	15705501350(without caster)
14	Weight
