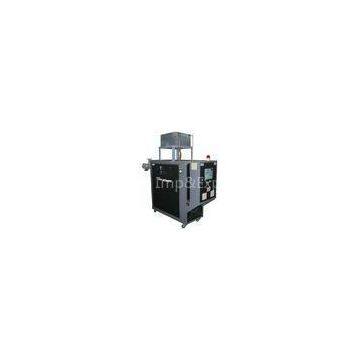

High - Voltage Explosion - Proof 300 C Oil Circulation System Mold Temperature Control Unit
- T/T L/C D/P D/A
- 7 days
You May Like
-
Mold Temperature Control Unit AEOT-300-300 for Jacketed Vessels / Rubber Presses / Hot Rolling Machi
-
Heating Power FOR Cold Press Max. temperature 200 Oil Temperature Controller AOST-50-60 60KW
-
304 Stainless Steel Oil Temperature Controller Unit for Injection Molding / Paper machine / Brick ma
-
Microprocessor Mold Process Oil Temperature Controller Units 180 C for Rubber Plastic / Paper Machi
-
High Temp Heating Mold Oil Temperature Controller for Printing Machine / Inkjet Printer
-
300 High-temperature Hot Oil Heater Oil Temperature Controller Units for Injection Machine
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | AEOT-20-40 |
Product Description
Certification:CE & ISO9001:2000
High - Voltage Explosion - Proof 300 °C Oil Circulation System Mold Temperature Control Unit
?
? ? ? ?AEOT-20-40 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the oil in the system. Oil type TCU circulate high temperature heat transfer fluid through the process application for temperature control. AEOT series MTC offer the range of temperature control from 25°C to 300 °C
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
AEOT-20-40 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
oil |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
300℃ |
|
|
7 |
Min. temperature |
25℃ |
|
|
8 |
heating power |
40KW(adjustable) |
|
|
9 |
heat exchange area |
0.1M2 |
|
|
10 |
Pump |
model |
SAP32-32-160 |
|
power |
1.5KW |
||
|
lift |
28M |
||
|
flow |
6M3/hr |
||
|
11 |
heating method |
Direct heating(Indirect cooling) |
|
|
12 |
Pipeline |
hot medium inlet/outlet |
DN25(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
13 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
14 |
