Home > Products > Mold Temperature Machine > 60kw Heating Power Mold Temperature Control Unit / Mold Temperature Machine Aeot-50-60 By-Pass

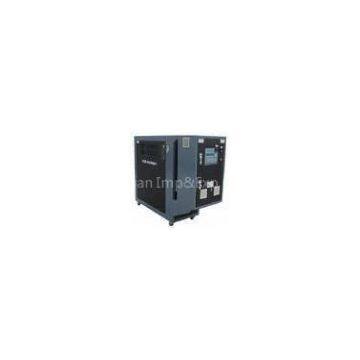

60kw Heating Power Mold Temperature Control Unit / Mold Temperature Machine Aeot-50-60 By-Pass
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
AEOT Customized Mold Temperature Control Unit 300 for Pasta Machine / Cold Rolling Mill
-
40KW Oil Circulation Mold Temperature Control for Bottle Blowing Machine AEOT-40-40
-
Hot Runner Mold Rham Oil Circulation System Mold Temperature Control Unit For Blister Machine / Flat
-
High-Voltage 300 Oil Industrial Plastic Mold Temperature Control Unit For Injection Molding Machine
-
High - Voltage Explosion - Proof 300 C Oil Circulation System Mold Temperature Control Unit
-
Mold Temperature Control Unit AEOT-300-300 for Jacketed Vessels / Rubber Presses / Hot Rolling Machi
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | AEOT-50-60 |
Product Description
Certification:CE & ISO9001:2000
60kw?Heating?Power?Mold?Temperature?Control?Unit?/?Mold?Temperature?Machine?Aeot-50-60?By-Pass
?
? ? ? ?AEOT-50-60 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the oil in the system. Oil type MTC circulate high temperature heat transfer fluid through the process application for temperature control. AEOT-50-60 offer the range of temperature control from?25°C?to?300 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
AEOT-50-60 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
oil |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
300℃ |
|
|
7 |
Min. temperature |
25℃ |
|
|
8 |
heating power |
60KW(adjustable) |
|
|
9 |
heat exchange area |
0.1M2 |
|
|
10 |
Pump |
model |
SAP50-32-200A |
|
power |
4KW |
||
|
lift |
32M |
||
|
flow |
16M3/hr |
||
|
11 |
heating method |
Direct heating(Indirect cooling) |
|
|
12 |
Pipeline |
hot medium inlet/outlet |
DN32(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
13 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
14 |
