Home > Products > Heating Temperature Controller > ARD-30-60 Heating Temperature Controller Unit for Rubber Forming Machine / Packaging Machinery

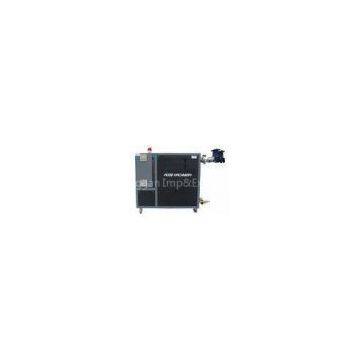

ARD-30-60 Heating Temperature Controller Unit for Rubber Forming Machine / Packaging Machinery
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Microprocessor Temperature Controller / Water Circulation Extrusion Temperature Control Unit for Fil
-
AC3380V 50HZ Water Circulation Mold Extrusion Temperature Control Unit for Printing Machine
-
3N-380-50HZ 300 Max. Temperature Mold Temperature Control Unit AEOT-200-225 with Ironing Machine
-
No-Fuse Breaker 3n-380-50hz Mold Temperature Control Unit Aeot-150-120 Aeot Series MTC
-
Mold Temperature Control Unit 120kw Heating Power For Electric Arc Furnace / Boring Machine
-
Mold Temperature Control Unit Oil Circulation System For Wood Presses, Rubber Presses, Jacketed Vess
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | ARD-30-60 |
Product Description
Certification:CE & ISO9001:2000
ARD-30-60 Heating Temperature Controller Unit for Rubber Forming Machine / Packaging Machinery
?
? ? ? ?ARD-30-60 Mold Temperature Control Units(MTC) are specially custome-designed for the temperature control of Rubber & Plastic industry. This series are highly customizable, has special forced cooling function with high-strength cooling capacityg capacity. ARD series can offer the temperature range from?15°C?to?98 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
ARD-30-60 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
water |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
98℃ |
|
|
7 |
Min. temperature |
15℃ |
|
|
8 |
heating power |
60KW(adjustable) |
|
|
9 |
Pump |
model |
RGP-30-120 |
|
power |
2.2KW |
||
|
lift |
22M |
||
|
flow |
150L/min |
||
|
10 |
heating method |
Direct heating(Indirect cooling) |
|
|
11 |
Pipeline |
hot medium inlet/outlet |
DN25(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
12 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
13 |
Frame Size |
L*W*H(mm) |
1350*500*1150(without caster) |
|
14 |
Weight |
