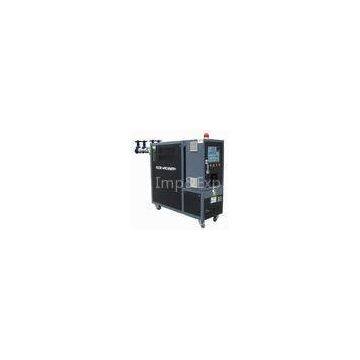

98 Water Circulation Heater Temperature Controller Unit for Rubber, Plastic Extrusion Industry

Brand Name	AODE		Place of Origin	China
Model Number	ARD

Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000

98℃ Water Circulation Heater Temperature Controller Unit for Rubber, Plastic Extrusion Industry
?

?????? AEX series Mold Temperature Control Units(MTC) are specially custome-designed for the temperature control of extrusion industry. This series are highly customizable, we can design multi units in one according to your requirements about different temperature control. ARD series can offer the temperature range from 15°C to 120 °C

FEATURE:

High temperature precision (PID±1°C) Thermometer for return water Switchover of heating power Explosion-proof device for pipelines Automatic air-exhausting after startup BY-PASS pressure release loop for hot water All welded construction use 2.0 steel plate PID temperature controller (UK WEST P6100) Isolated electric cabinet for longer services lives of electric appliances Pressure test and Functional test of system prior to shipment Control mode : imported microcomputer or PLC (optional)

OPTIONAL FUNCTION:

Air blowing & water return Instantly cooling & shut down RS485 communication for automated management Customizable multi-point temperature control Customizable horse power and heating power for water pump

SAFETY PROTECTION:

Pressure Detection: pressure gauge with electric contact which show real pressure of entire system was?equipped on the piping. Control system will alarm immediately when pressure fall into a anomaly value, and start the BY-PASS pressure release loop protection, at the same time Heater will stop working. Water Low Level Detection: Liquid switch is equipment with a ball float level controller, Control system will alarm immediately when level fall into a certain value, and the Heater will stop at the same time. Other Protection: Over Temperature Alarm, Power Reverse Alarm, Pump Overload Alarm, Heating Anomaly Alarm, Short Circuit Alarm.

MODEL SPECIFICATION:

Model	Heating Capacity	Pump Data	Pipe Connecting	Approx.	Overall Size
kw	BTU/Hr	Power (kw)	Flow (L/min)	Lift (m)	Inlet (DN)	Outlet (DN)	Weight (kg)	L*W*H (mm)
AEX-05	3	10,239	0.375	35	20	10*4	10*4	40	525*260*530
AEX-10	4	13,652	0.75	100	22	10*4	10*4	40	525*260*530
AEX-20	9	30,717	1.5	180	24	10*4	10*4	75	800*600*1000
AEXT-10	4*3	40,956	0.75	100	22	10*4	10*4	110	800*600*1000
AEXF-10	4*4	54
