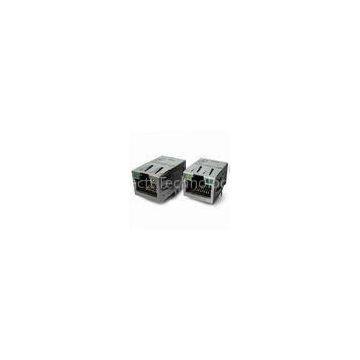

1-port Tab Up Transformer 1000M RJ45 Network Connector for Fiber Optic Transceivers

1-port Tab Up Transformer 1000M RJ45 Network Connector for Fiber Optic Transceivers

10/100/1000BASE 1x1 Tab Up RJ45B KRJ-339PNL

33.0mm1000BASE?1x1?Tab?Up?Transformer?RJ45? with led and EMI

Descrition:

RJ45?,in?order?to?keep?good?touch?between?gold?finger?and?crystal?head,should?paint?the?gold?on?the?surface,there?is?6u,

15u,30,50u,usually?use?6u,according?to?customer’s?request?and?cost?to?proceed, gold?finger?insert?and?pull?life?should?be?750?times?above

Specifications:

.Insertion?Loss?:1-100MHZ?-1.0dBmax

.Rturn?Loss?:??1-30MHZ?-16.0dBmin

???????????????30-60MHZ?-14.0dBmin

???????????????60-80MHZ?-10.0dBmin

.Cross?Talk?:1-30MHZ?-40.0dBmin

??????????????30-60MHZ?-35.0dBmin

??????????????60-80MHZ?-30.0dBmin

.CMR:1-100MHZ?-35.0dBmin

.Hi-Pot:1500V?AC?6S?1mA

.Turn?Ratio?:1CT:1CT±3％

.OCL:350uH＠100KHZ?100Mv?8mA?DC

.Contacts:0.35mm?thick?phos?bronze?plated?with?6u’gold?in?contact?are?

.Housing?Material:PBT?Black

.Operating?temperature?rang?:0℃?to?+70℃

Applications:

Integrated RJ45 connector main used to :

? 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
