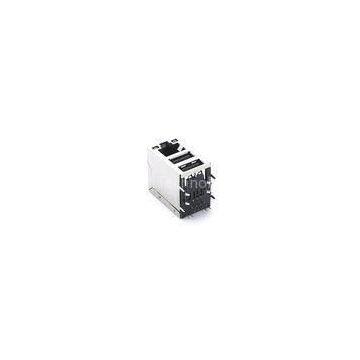

LAN-on-Motherboard Shielded RJ45 Jack dual USB combo connector with leds

LAN-on-Motherboard Shielded RJ45 Jack dual USB combo connector with leds

1.10/100 base-TX with a single rj45
2.Shielded RJ45 Connector
3.tab-up with two USB combo connector
?

10/100Base-TX Shielded RJ45 Connector?

Descriptions:

RJ45/Dual USB Combo is a Through Hole integrated connector module With a single Rj45 Tab-UP in combination with two USB connector ports. The RJ45 Connector internal magnetics are designed to support 10/100Base-TX Applications, Such as LAN-on-Motherboard and PC applications.

Features and Benefits:

* LAN interface suitable for 10/100Base-TX applications.

* RJ45/USB stacked design saves on PCB real estate.

* RoHS-6 peak wave solder temperature rating 260 0C.

* USB module complies with USB 2.0 standards and meets CAT5 Fast Ethernet industry performance standard.

* Internal magnetics are 100% electrically tested for HI-POT and functionality.

Electrical Performance Summary:

* Meets or exceeds IEEE 802.3 ANSI X 2263 standard.

* 350 uH minimum OCL with 8 mA bias current.

* High performance for maximum EMI suppression.

* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.

* Operating temperature range: 0 0C to +70 0C.

* Storage temperature range: -40 0C to +85 0C.

Material Specifications:

* Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.

Contact Area: Phosphor Bronze, Gold Plated,6U~50U Optional.

PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel

* Housing: Reinforced FR PA66-B30 UL94V-0.

* Metal Shell: Copper Alloy, Nickel Plated

* Case: Phenolic, UL94V-0 Black.
