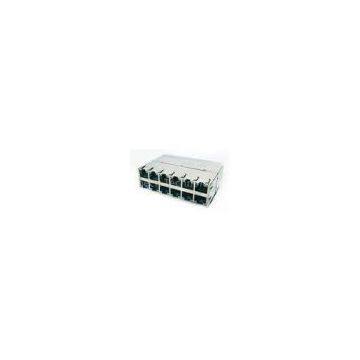

High performance cat 5 6 RJ45 or rj12 shielded electrical connectors multi ports

High performance cat 5 6 RJ45 or rj12 shielded electrical? connectors multi ports

RJ45 single port (1x1) Tab-Down with LEDs Integrated magnetics connector (ICM)
designed to support applications
?

10/100 Base-TX POE Multi Port (1x2) Tab-down RJ45 connectors? H1267-F4322-B

Description:

10/100 Base-TX RJ45 Multi Port (1x2) Tab-Down with Leds

ROHS-6 peak wave solder temperature rating 260°C.

Suitable for CAT5 &6 Fast Ethernet Cable or better UTP.

Internal magnetics are 100% electrically tested for HI-POT and functionality.

Electrical Performance Summary:

Meets or exceeds IEEE 802.3 and standard for 1000Base .

350 uH minimum OCL with 8mA bias current.

High performance for maximum EMI suppression.

Minimum 1500 Vrms isolation per IEEE 802.3 requirement.

Operating temperature range: 0°Cto+70°C.

Storage temperature range: -40°C to +85°C.

Material Specifications:

Insert: Plastic:Reinforced FR PA66-B30 UL94V-0.

Contact Area:Phosphor Bronze,Gold Plated.

PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel.

Housing: Reinforced FR PA66-B30 UL94V-0

Metal Shell: Copper Alloy,Nickel Plated.

Case: Phenolic, UL94V-0 Black.
