Home > Products > RJ45 Connector > 10 / 100 Base Tab Up RJ45 Connector with Transformer Modular Plug for Network Switch

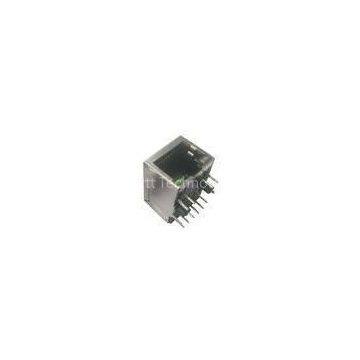

10 / 100 Base Tab Up RJ45 Connector with Transformer Modular Plug for Network Switch
- 0 Metric Ton / Metric Tons per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Mini 1-Port Tab Up Transformer RJ45 USB Connectors for Telecommunication in 0 to +70
-
10/ 100 BASE Tab Up Transformers RJ45 Network Connector With Impedance Resistor
-
Customized Tab Up 1000M RJ45 with Transformer, 10 / 100 / 1000BASE 1* 1 RJ45B
-
LAN-on-Motherboard Shielded RJ45 Jack dual USB combo connector with leds
-
10/100Base-TX Multi Port (2x2) RJ45 Connector W/Transformer W/O LED
-
LOM ez RJ45 network Connector dimensions with transformer for PC notebook
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | Magnectt |
Product Description
Certification:ISO9001, Rohs
10 / 100 Base??Tab Up RJ45 Connector with Transformer / Filter / Modular Plug for Network Switch
25.4mm10/100BASE?1x1?Tab?UP?Transformer?RJ45 ?KRJ-254DPNL
Specifications:
.Insertion?Loss?:1-100MHZ?-1.0dBmax
.Rturn?Loss?:??1-30MHZ?-16.0dBmin
???????????????30-60MHZ?-14.0dBmin
???????????????60-80MHZ?-10.0dBmin
.Cross?Talk?:1-30MHZ?-40.0dBmin
??????????????30-60MHZ?-35.0dBmin
??????????????60-80MHZ?-30.0dBmin
.CMR:1-100MHZ?-35.0dBmin
.Hi-Pot:1500V?AC?6S?1mA
.Turn?Ratio?:1CT:1CT±3％
.OCL:350uH＠100KHZ?100Mv?8mA?DC
.Contacts:0.35mm?thick?phos?bronze?plated?with?6u’gold?in?contact?are?
.Housing?Material:PBT?Black
.Operating?temperature?rang?:0℃?to?+70℃
Description:
|
1.1?RJ-45?connector?integrated?with?X\'FMR/?Impedance?Resistor/High?Voltage?Capacitor. |
|
|
1.2?Size?same?as?RJ-45?connector?to?save?PCB?board?space. |
|
|
1.3?Design?for?10/100base?transmission?over?UTP-5?CABLE.? |
|
|
1.4?Operating?temperature?range?is?0℃~70℃. |
RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,
gold finger insert and pull life should be 750 times above?
Applications:
Integrated RJ45 connector main used to :
? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set top box,internet camera,netbridge,computer,?telecommunication, MODEM,?HomePNA, DSL／ADSL and so on.
