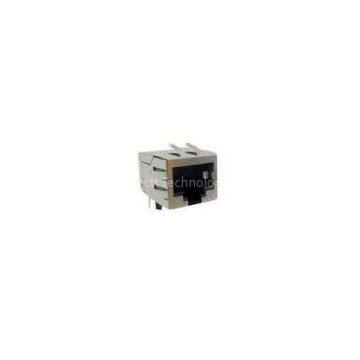

Single port 10 / 100 Base Integrated Tab Up RJ45 with Transformers for PCMCIA Net Card
- T/T L/C D/P D/A
- 7 days
You May Like
-
25.4mm 1000M Double Port Integrated Tab Up RJ45 Transformer Connector
-
10 / 100 Base Tab Up RJ45 Connector with Transformer Modular Plug for Network Switch
-
Mini 1-Port Tab Up Transformer RJ45 USB Connectors for Telecommunication in 0 to +70
-
10/ 100 BASE Tab Up Transformers RJ45 Network Connector With Impedance Resistor
-
Customized Tab Up 1000M RJ45 with Transformer, 10 / 100 / 1000BASE 1* 1 RJ45B
-
LAN-on-Motherboard Shielded RJ45 Jack dual USB combo connector with leds
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | Magnectt |
Product Description
Certification:ISO9001, Rohs
Single port 10 / 100 Base Integrated Tab Up RJ45 with Transformers for PCMCIA Net Card
25.4mm10/100BASE?1x1?Tab?UP?Transformer?RJ45 ?KRJ-098GNL
Description:
RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,
gold finger insert and pull life should be 750 times above?
|
1.1?RJ-45?connector?integrated?with?X\'FMR/?Impedance?Resistor/High?Voltage?Capacitor. |
|
|
1.2?Size?same?as?RJ-45?connector?to?save?PCB?board?space. |
|
|
1.3?Design?for?10/100base?transmission?over?UTP-5?CABLE.? |
|
|
1.4?Operating?temperature?range?is?0℃~70℃. |
Specifications:
.Insertion?Loss?:1-100MHZ?-1.0dBmax
.Rturn?Loss?:??1-30MHZ?-16.0dBmin
???????????????30-60MHZ?-14.0dBmin
???????????????60-80MHZ?-10.0dBmin
.Cross?Talk?:1-30MHZ?-40.0dBmin
??????????????30-60MHZ?-35.0dBmin
??????????????60-80MHZ?-30.0dBmin
.CMR:1-100MHZ?-35.0dBmin
.Hi-Pot:1500V?AC?6S?1mA
.Turn?Ratio?:1CT:1CT±3％
.OCL:350uH＠100KHZ?100Mv?8mA?DC
.Contacts:0.35mm?thick?phos?bronze?plated?with?6u’gold?in?contact?are?
.Housing?Material:PBT?Black
.Operating?temperature?rang?:0℃?to?+70℃
Applications:
Integrated RJ45 connector main used to :
? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set top box,internet camera,netbridge,computer,?telecommunication, MODEM,?HomePNA, DSL／ADSL and so on.
