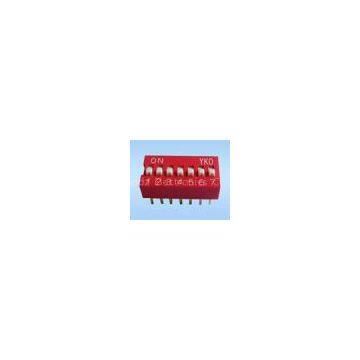

Dip switch DAYJBH-2.54
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | DAYJBH-2.54 |
Product Description
DAYJBH-2.54
Description:
Product Specification
Switching rating(Switching): 25mA 24VDC
Switching rating(Non-switching): 100mA
Contact resistance(initial): 50mΩ Max
Contact resistance(after test): 100mΩ Max
Insulation resistance: 1000mΩ Min.at 500VDC
Dielectric strength: 500VAC.for 60 seconds. 1mA
Capacitance between adjacent switches: 5PF Max
Mechanical Specification
Operating temp: -25℃~+70℃
storage temp: -40℃~+85℃
operation force: 8N Max.
Mechanical life: 2000 operations
Vibration: Per GJB360A-96
Solder ability: After flux 230±5℃for 5±0.5seconds,95%coverage
Resistance to soldering heat:260±5℃ for 5±1seconds
Material Specification
Cover::engineering plastics (Red)
Bottom::engineering plastics (black)
Pins::copper alloy plating solution
Kays:Nylon (White)
