Switch Power Supply's Terminal 15EDGVC-3.5/3.81
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | 15EDGVC-3.5/3.81 |
Product Description

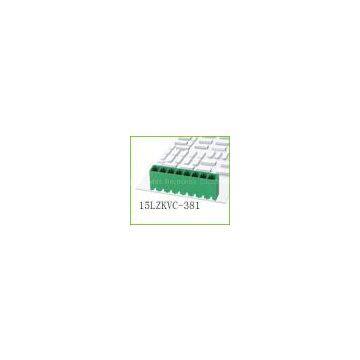

15EDGVC-3.5/3.81
APPROVAL
Electrical
Standard UL IEC
Rated voltage 300V 250V
Rated current 8A 7A
Withstanding voltage AC2000V/1Min
Mechanical
Ambient temperature -40°C~+105°C
Dimensions
Pitch 3.5mm(.138") 3.81mm(.150")
Poles 2P-24P
Material
Housing PA66,UL94V-0
Pin header Brass,Tin plated
