Home > Products > PCB Schraube-Verdrahrungs terminal > Home appliances's terminal DA126R-500

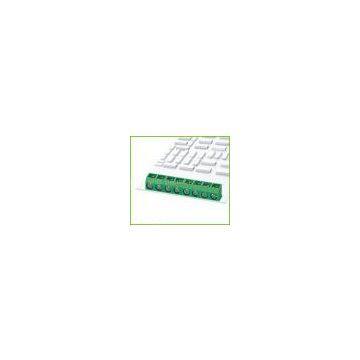

Home appliances's terminal DA126R-500
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | DA126R-500 |
Product Description
DA126R-500
APPROVAL
Electrical
Standard UL IEC
Rated voltage 300V 250V
Rated current 10A 18A
Wire range 26-14AWG 0.5-1.5mm2
Withstanding voltage AC2000V/1Min
Mechanical
Torque 0.4Nm(3.5Lb-In.)
Ambient temperature -40°C~+105°C
Strip length 6-7mm
Dimensions
Pitch 5.0mm(.197")
Poles 2P,3P-24P
Material
Housing PA66,UL94V-0
Screws M2.5,steel,Cr3+ Zn plated
Pin header Brass,Tin plated
Wire guard Stainless steel
