Home > Products > PCB Schraube-Verdrahrungs terminal > PCB Schraube Verdrahrungs terminal DA128A-5.0/5.08
PCB Schraube Verdrahrungs terminal DA128A-5.0/5.08
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | DA128A-5.0/5.08 |
Product Description

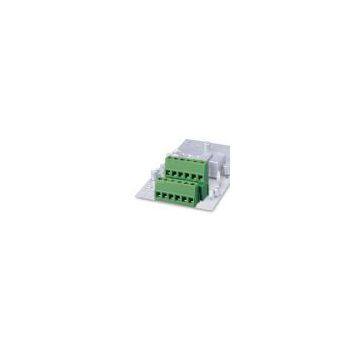

PCB Screw Terminal Block128A
DA128A-5.0/5.08
APPROVAL
Electrical
Standard UL IEC
Rated voltage 300V 250V
Rated current 10A 24A
Wire range 24-12AWG 2.5mm2
Withstanding voltage AC2000V/1Min
Mechanical
Torque 0.4Nm(3.5Lb-In.)
Ambient temperature -40°C~+105°C
Strip length 7mm
Dimensions
Pitch 5.0mm(.197")
Poles 2P,3P-24P
Material
Housing PA66,UL94V-0
Screws M2.5,steel,Cr3+ Zn plated
Pin header Brass,Tin plated
Cage Brass,Ni plated
TEL:86-15016766649 miss Cindy ke
MSN:addz001@msn.com
Emain:addz001@yahoo.cn
Contact Us
- Dongguan addz Electronics Co., Ltd
- Contact namecindy ke Chat Now
- Phone86-769-81245335
- AddressSeg electronics market dongcheng town dongguan city guangdong State china, Weifang, Shandong
