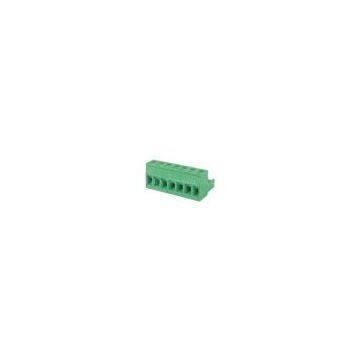

IT Communication fixtures's terminal 2EDGK-5.0/5.08
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | 2EDGK-5.0/5.08 |
Product Description
APPROVAL
Electrical
Standard UL IEC
Rated voltage 300V 320V
Rated current 15A 20A
Wire range 28-12AWG 2.5mm2
Withstanding voltage AC2500V/1Min
Mechanical
Torque 0.4Nm(3.5Lb-In.)
Ambient temperature -40°C~+105°C
Strip length 7mm
Dimensions
Pitch 5.0mm(.197"),5.08mm(.200")
Poles 2P-24P
Material
Housing PA66,UL94V-0
Screws M2.5,steel,Cr3+ Zn plated
Contact Phosphor bronze
Cage Brass,Ni plated
