Home > Products > Barrikade-Verdrahtungs terminal > All league terminals DA46GS-B-950
All league terminals DA46GS-B-950
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | DA46GS-B-950 |
Product Description

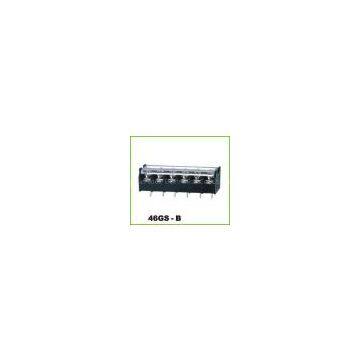

DA46GS-B-950
APPROVAL
Electrical
Standard UL IEC
Rated voltage 300V 750V
Rated current 20A 32A
Wire range 22-12AWG 4.0mm2
Withstand Voltage AC2000V/Min
Insulation Resistance 500MΩ/DC500V
Mechanical
Max.Torque Value 1.2N.m 10.6Lb.in
Ambient temperature -40°C~+105°C
Dimensions
Pitch 9.5mm(.375")
Poles 2P-24P
Material
Housing PA66 UL 94V-0
Terminal Brass,0.8t,Tin-Plated
Screws Steel,M4 Ni-Plated
Contact Us
- Dongguan addz Electronics Co., Ltd
- Contact namecindy ke Chat Now
- Phone86-769-81245335
- AddressSeg electronics market dongcheng town dongguan city guangdong State china, Weifang, Shandong
Product Categories
| Barrikade-Verdrahtungs terminal | Feed Through Terminal Block | New product | PCB Schraube-Verdrahrungs terminal |
| plug in terminals |
