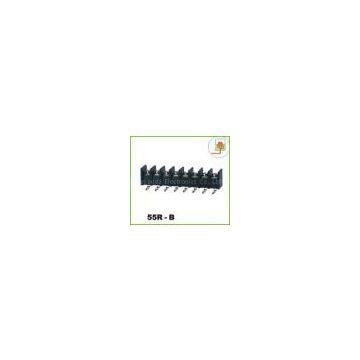

Lighting's terminal DA55R-B-1000
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | DA55R-B-1000 |
Product Description
DA55R-A-1000
DA55R-B-1000
APPROVAL
Electrical
Standard UL IEC
Rated voltage 300V 750V
Rated current 20A 32A
Wire range 22-12AWG 4.0mm2
Withstand Voltage AC2000V/Min
Insulation Resistance 500MΩ/DC500V
Mechanical
Max.Torque Value 1.2N.m 10.6Lb.in
Ambient temperature -40°C~+105°C
Dimensions
Pitch 10.0mm(.394")
Poles 2P-24P
Material
Housing PA66 UL94V-0
Terminal Brass,0.8t,Tin-Plated
Screws Steel,M4 Ni-Plated
