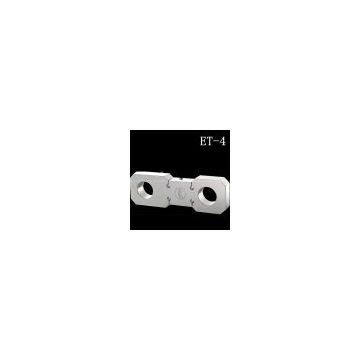

ET-4 tension load cell, sensor,crane scale load cell

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	South-Ocean,OEM		Place of Origin	China
Model Number	ET-4

Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Materials	Alloy steel
Suitable for	Crane scale
Capacity	1T~100T
Sensitivity	1.50±0.010	MV/V
Nonlinearity	±0.02	%FS
Hysteresis	±0.02	%FS
Repeatability	±0.01	%FS
Creep(30 minutes)	±0.02	%FS
Zero balance	±1.00	%FS
Temperature effect on zero	±0.02	%FS/10℃
Temperature effect on output	±0.02	%FS/10℃
Input resistance	385±10	Ω
Output resistance	350±3	Ω
Insulation resistance	≥5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	℃
Operating temperature range	-20~+60	℃
Safe overload	120	%FS
cable	Φ5.4X1(5)	M
Cable color code	Input: red+ black- Output: green+ white-
