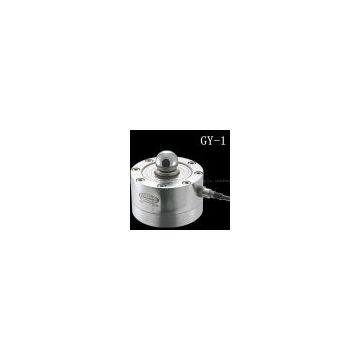

GY-1 wheel shaped load cell,sensor,alloy steel, stainless steel

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	South-Ocean,OEM		Place of Origin	China
Model Number	GY-1

Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Materials	Alloy steel
Suitable for	Truck scale, railroad scale, tester, crane scale, etc.
Capacity	1Klb~200Klb
Sensitivity	2.00±0.010,4.00±0.010	MV/V
Nonlinearity	±0.03	%FS
Hysteresis	±0.03	%FS
Repeatability	±0.02	%FS
Creep(30 minutes)	±0.02	%FS
Zero balance	±1.00	%FS
Temperature effect on zero	±0.02	%FS/10℃
Temperature effect on output	±0.02	%FS/10℃
Input resistance	385±15,765±15	Ω
Output resistance	350±3,700±3	Ω
Insulation resistance	≥5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	℃
Operating temperature range	-20~+60	℃
Safe overload	120	%FS
cable	Φ6X9	M
Cable color code	Input: red+ black- Output: green+ white-
Remark	If you want to know more detail information, pls contact me by e-mail: zso-della@hotmail.com
