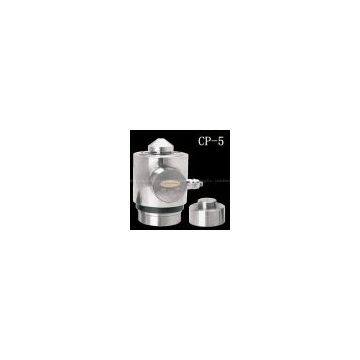

CP-5 column load cell, sensor,manufacturer

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	South-Ocean,OEM		Place of Origin	China
Model Number	CP-5

Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Materials	Alloy steel, stainless steel
Suitable for	Electronic truck scales, dynamic railroad scales and big capacity hopper scales, etc
Capacity	50T
Sensitivity	1.50±0.010	MV/V
Nonlinearity	±0.02	%FS
Hysteresis	±0.02	%FS
Repeatability	±0.01	%FS
Creep(30 minutes)	±0.02	%FS
Zero balance	±1.00	%FS
Temperature effect on zero	±0.02	%FS/10℃
Temperature effect on output	±0.02	%FS/10℃
Input resistance	670±10	Ω
Output resistance	600±5	Ω
Insulation resistance	≥5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	℃
Operating temperature range	-20~+60	℃
Safe overload	120	%FS
cable	Φ6X12	M
Cable color code	Input: red+ black- Output: green+ white-
Remark	If you want to know more detail information, pls contact me. E-mail: zso-della@hotmail.com
