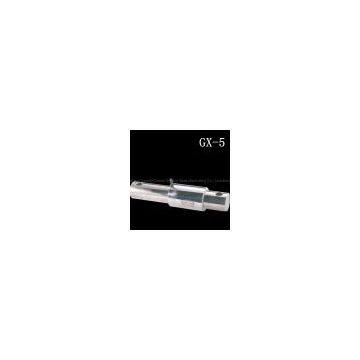

GX-5 shear beam load cell, sensor,manufacturer

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	South-Ocean,OEM		Place of Origin	China
Model Number	GX-5

Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Materials	Alloy steel
Suitable for	Fodder, rubbish transport truck, hopper scale, etc.
Capacity	5T~7T
Sensitivity	0.50±0.05	MV/V
Nonlinearity	±0.05	%FS
Hysteresis	±0.03	%FS
Repeatability	±0.02	%FS
Creep(30 minutes)	±0.02	%FS
Zero balance	±1.00	%FS
Temperature effect on zero	±0.02	%FS/10℃
Temperature effect on output	±0.02	%FS/10℃
Input resistance	385±10	Ω
Output resistance	350±3	Ω
Insulation resistance	≥5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	℃
Operating temperature range	-20~+60	℃
Safe overload	120	%FS
cable	Φ6X1	M
Cable color code	Input: red+ black- Output: green+ white-
Remark	If you want to know more detail information, pls contact me by e-mail: zso-della@hotmail.com
