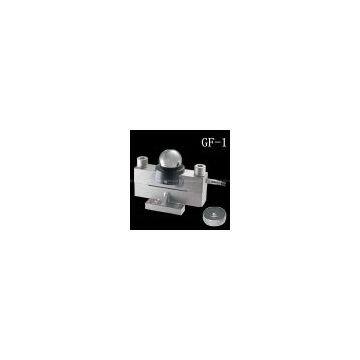

GF-1 double shear beam load cell, bridge load cell,sensor

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	South-Ocean,OEM		Place of Origin	China
Model Number	GF-1

Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Materials	Alloy steel, stainless steel
Suitable for	Electronic truck scale, railroad scale, hopper scale and various special scale.
Capacity	10T~50T
Sensitivity	2.00±0.010	MV/V
Nonlinearity	±0.03	%FS
Hysteresis	±0.03	%FS
Repeatability	±0.01	%FS
Creep(30 minutes)	±0.02	%FS
Zero balance	±1.00	%FS
Temperature effect on zero	±0.02	%FS/10℃
Temperature effect on output	±0.02	%FS/10℃
Input resistance	770±5	Ω
Output resistance	700±3	Ω
Insulation resistance	≥5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	℃
Operating temperature range	-20~+60	℃
Safe overload	120	%FS
cable	Φ6X12	M
Cable color code	Input: red+ black- Output: green+ white-
Remark	If you want to know more detail information, pls contact me by e-mail: zso-della@hotmail.com
