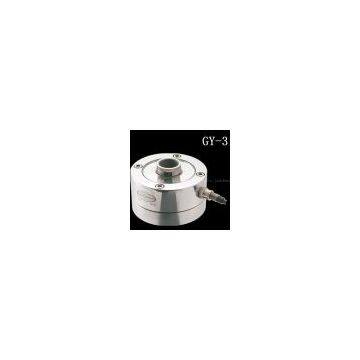

GY-3 load cell, South-Ocean,sensor manufacturer

Specification

The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.

Characteristic

Wheel shaped load cell, shear beam.

Good rigidity, strong side force resistance, high output to 4MV/V, overload elf-locking.

Potted sealed or hermetically sealed, IP67 or IP68.

Materials

Alloy steel , stainless steel

Suitable for

Truck scale, railroad scale, tester, crane scale

Capacity

0.5T~100T

Sensitivity

2.00±0.010,4.00±0.010

MV/V

Nonlinearity

±0.03

%FS

Hysteresis

±0.03

%FS

Repeatability

±0.02

%FS

Creep(30 minutes)

±0.02

%FS

Zero balance

±1.00

%FS

Temperature effect on zero

±0.02

%FS/10℃

Temperature effect on output

±0.02

%FS/10℃

Input resistance

385±15,765±15

Ω

Output resistance

350±3,700±5

Ω

Insulation resistance

≥5000

MΩ

Excitation voltage

10

V(DC/AC)

Compensated temperature range

-10~+50

℃

Operating temperature range

-20~+60

℃

Safe overload

120

%FS

cable

Φ6X9

M

Cable color code

Input: red+ black- Output: green+ white-

Remark

If you want to know more detail information, pls contact me .
