STLQ-1 Pavement Material Strength Tester
- Shanghai port
- T/T Credit Card
You May Like
-
STK-50 Plate Bearing Tester
-
Crack Measurement Microscope for Measuring Crack Width of Bridge Road Tunnel
-
STHJ-10 Cohesional Strength Tester for Testing Cohesional Strength of Face Brick
-
STK-50 Plate Bearing Test Apparatus
-
STHJ-10 Face Brick Cohesional Strength Tester
-
Sand Density Testing Apparatus (Mortar Cylinder )
Product Details
| Place of Origin | Shanghai, China | Brand Name | SHTG | |
| Model Number | STLQ-1 Pavement Material Strength Tester | Power | Electronic | |
| Usage | Other, Pavement Material Strength Tester |
Product Description
Specifications
Pavement Material Strength Tester1.Pavement Materials
2.multi-function with all kinds of accessories

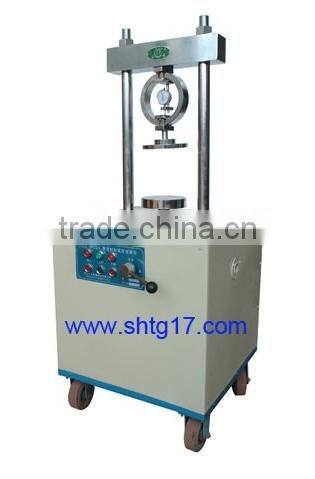

STLQ-1 Pavement Material Strength Tester
1. Application :
- The mainframe of this pavement material strength tester is a multi-functional testing apparatus used for highway roadbed and pavement materials.
- It can also test all kinds of adhesive materials and stabilized soil specimen's unconfined compression strength and indirect tensile strength, test CBR for soil and pavement materials, test asphalt mixture's hot stability and anti-plastic flow-----stability and flow value.
- It also can be used for other tests which need to put on vertical loading.
2. Characteristic:
- Reasonable design, use mechanical drive, durable and reliable.
- The push-button can be operated by merchanical or manual.
- Adjustable flat top plate can automatically ascend and descend to leveling.
- Have inhibiting device.
- The exposed part of turn screw have protective cover, it can avoid the screw exceed the position and take off in operation , and avoid the screw be jammed by other other materials as well.
3. Main technical parameter:
- Max. rated loading: 100KN
- Max. displacement distance for screw plate: 200mm
- Merchanical speed: high 50mm/min, low 1mm/min
- Manual speed: 1/6mm/each cycle of crank
- Motor specification: JW1734 550W 1400r/min
- Outside size: 507X430X1390mm
- Weight: approx. 120kg including motor.
Packing Material: Plywood Case meeting export long transport requirement.
Packing Method: Horizontal Packing to saving more shipping cost.
Shipping : within 5-10 days after receive 100% payment .
Shipping way: shipped by sea or Air is avaliable.
Warrant one year. Honesty to working for you, after sale with our patience and sincerity.
