STCBR-2 In-situ CBR Test Apparatus
- Shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SHTG | |
| Model Number | STCBR-2 | Power | Electronic | |
| Usage | Other, In-situ CBR Test Apparatus |
Product Description
Specifications
In-situ CBR Test Apparatus1.Hydraulic jack Capacity: 100KN (ball seat)
2.Proving ring: 60KN
STCBR-2 In-situ CBR Test Apparatus
Application:
1. with hydraulic jack
2. suitable for all kinds of earth base materials at road site
Introduction :
It's designed and made according to JTJ059-95 “Road Base and Road Surface Site Determine Rules”. It is applicable for determining the site CBR value of all kinds of earth base materials at road site.
The operating principle is: calculate the earth base site CBR value with the quantity of penetration and the load tested by the ergometer. The quantity penetration can be tested by a load motorcar with back axis load less than 60KN with loading at the penetration pole by a jack.
Specifications:
(1) 100KN hydraulic jack and the ball base
(2) 60KN ergometer
(3) Penetration pole diameter: Φ50mm length 200mm
(4) Bearing plate : 1.25kg/piece 4 pieces
(5) Penetration determinate fitting platform and dial indicator

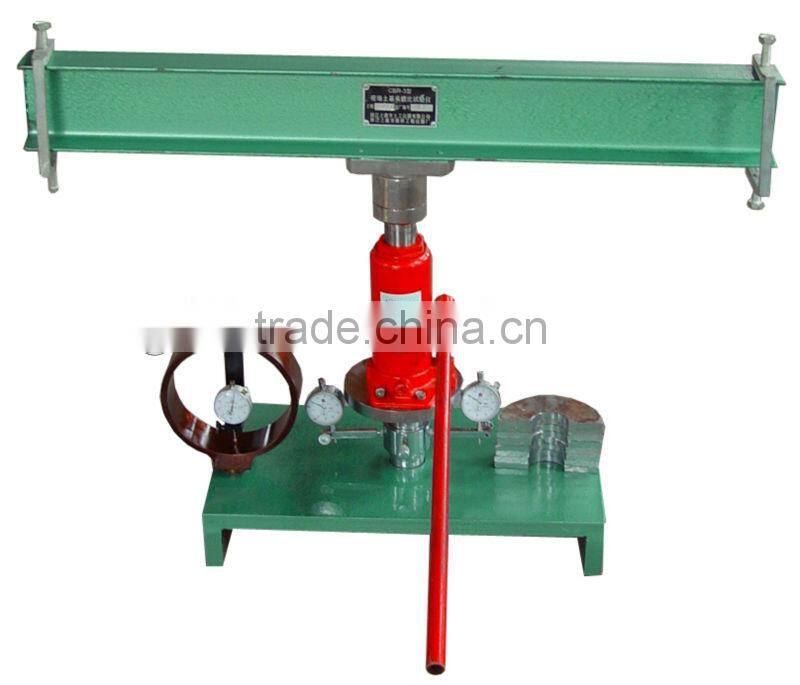

Below is picture of In-situ CBR Test Apparatus:
Manufacturing License for China Industrial Products( XK07-003-00014)
