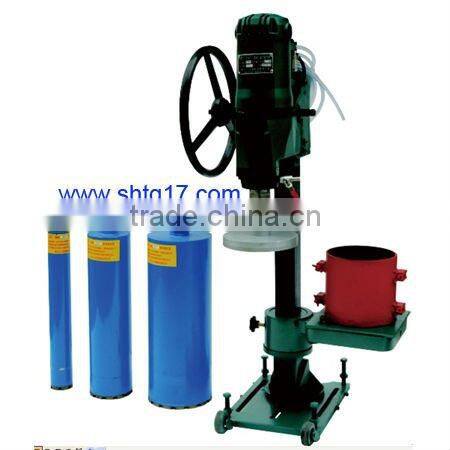

Borehole Drilling Machine
- Any port in China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SHTG | |
| Model Number | HZ-15 | Power | Electronic | |
| Usage | Other, Taking specimen from pavement |
Product Description
Specifications
borehole drilling machineman-made PCD drilling bit
max. boring depth: 400mm
boring diameter: 200m
borehole drilling machine
(Drilling Machine, Testing Equipment)
1. Application:
HZ-15 Concrete Hollow Boring Machine is used to core drilling of concrete, limestone and foundation for compression and flexural testing in highway, airport, port and dam etc.
It also can be used for scientific core drilling.
It is also suitable for the core drilling of other non-metal materials, like fire-proof material, ceramics,glasses and rock.
2. Characteristic:
Use imported gasoline engine, drive conveniently, run reliably, operate simply .
No need electric power
equipped with man-made PCD thin drilling bit
Boring and sampling size accurately
The surface is smotth after boring, don't damage the drill materials .
3. Main technical parameter:
Max. hollow boring depth: 400mm
Max. hollow boring diameter: 200mm
Boring direction: vertical down
Feeding mode: manual
Main shaft speed: 800~1200r/min
Drill type: man-made PCD thin drilling bit .
Drive: gasoline engine (power: 5.5HP, speed: 3600r/min)
Pls note:
we take OEM and special production for you. Meanwhile we will give you a certain discount.
