STK-30 Plate Bearing Test Apparatus With Three Watch
- Shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SHTG | |
| Model Number | STK-30 | Power | Electronic | |
| Usage | Other, estimate bearing capacity of road base or ground base |
Product Description
Specifications
Plate Load Test ApparatusLoad plate: 300mm
Hydraulic jack max. load: 5T
Span: 3000mm
STK-30 Plate Bearing Test Apparatus with three watch
Application:
Plate Bearing Test Apparatus machine used to estimate bearing capacity of road base or ground base, which is filled and compacted after coarse and fine grained soil, also can used to count deformation modulus of even groundsill.
Specification:
1. Load plate: 300mm
2. Hydraulic jack max. load: 5T
3. Hydraulic jack journey: 120mm
4. Span: 3000mm
5. Electric oil pump rated pressure: 70Mpa
6. Pressure range: 0-25Mpa
7. Displacement range: 0-10mm
8. Use engine oil: number 15 engine oil
9. Use temperature environment: 5°C—45°C

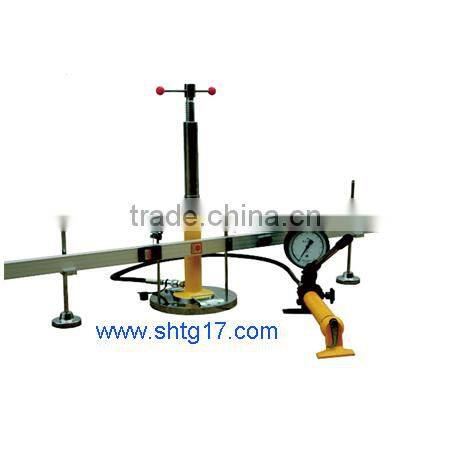

Below is picture of Plate Bearing Test Apparatus:
TYPE 1:
TYPE 2:
Please note: A certain discount will be provided.
