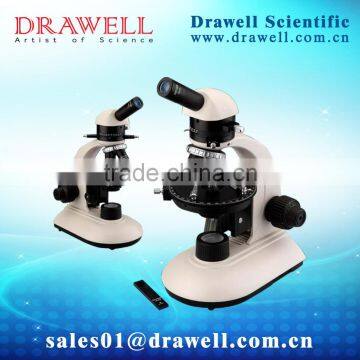

B-POL Polarizing Microscope Outfits

FOB Price

US$ 345 - 410 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DRAWELL		Model Number	B-POL
Theory	Biological Microscope		Drawtube	Monocular

B-POL Polarizing Microscope Outfits

Items	Specification	B-POL
Eyepiece	WF 10×-18mm (Cross, Reticule 0.1mm)	Y
Eyepiece	WF 16×-13mm	o
Non-stress Achromatic Objective	4×	Y
	10×	Y
	40× (S)	Y
	20×	o
	60× (S)	o
Mono Head	Inclined 30°, Rotatable 360°	Y
Nosepiece	Quadplex	Y
Analyzer Unit	0-90°,It can be moved out of the optical path for single polarizing observe.	Y
Bertrand Lens	It can be moved out of the optical path.	Y
λ Slip	First Class Red	Y
1/4λ Slip		Y
Quartz Wedge	(Ⅰ-IV Class)	o
Revolving Round Stage	Rotatable 360°, Division 1°, Vernier division 6’,can be locked.	Y
Polarizing Attached Mechanical Stage		o
Condenser	Abbe N.A. 1.25	Y
Polarizing Unit	It can be moved out of the optical path.	Y
Illumination	6V/20W Halogen Lamp	Y
Illumination	LED Lamp	o

Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.

B-POL Polarizing Microscope Size(mm):
