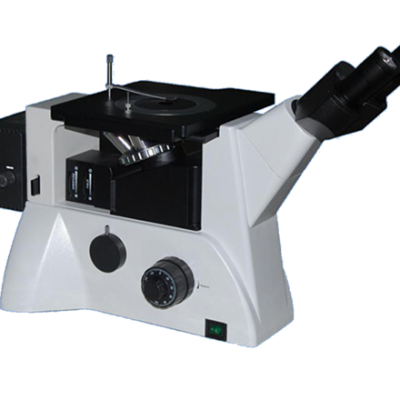

Inverted metallurgical microscope MJ42
USD $1
≥1 Set
- 0 Set / Sets per Month
- T/T PayPal
You May Like
-
Research-level upright fluorescence microscope MF43-N
-
Inverted fluorescence microscope MF53-N
-
Scientific grade stereo-fluorescence microscope MZX81
-
Routine biological microscope with trinocular observation tube ML31
-
Inverted biological microscope with phase contrast MI52-N
-
Scientific grade metallurgical microscope MJ43
Product Description
Inverted metallurgical microscope MJ42 employs excellent infinity optical system and modularity design concept to achieve easy system upgrade and realize functions of polarizing observation, dark field observation. The compact, stable and high-rigidity body, fully meets the anti-vibration requirement for the operation. The ergonomic design makes the operation more convenient and comfortable in a wider space. This inverted metallurgical microscope is an ideal instrument for the research of metallurgy, mineralogy, and precision engineering to study the of the microstructure and surface morphology.
Feature
■Inifinity optical system
■Plan achromatic and long working distance dry objective
■45°inclined observation tube comfortable for observation
■Illumination with polarizer,frosted glass and yellow ,green and blue filters
■Plan achromatic and long working distance dry objective
■45°inclined observation tube comfortable for observation
■Illumination with polarizer,frosted glass and yellow ,green and blue filters
■Optional with dark field configuration and bigger power illumination
Specifications| Eyepiece | Wide field WF10X(field number:Φ22mm) | |
| Objectives (Infinity plan achromatic with long working distance) | For bright field (MJ42) | PL L10X/0.25 WD:20.2 mm |
| PL L20X/0.40 WD:8.80 mm | ||
| PL L50X/0.70 WD:3.68 mm | ||
| PL L100X/0.85 (dry) WD:0.40 mm | ||
| For bright and dark field (MJ42 BD) | PL L5X/0.12 BD WD:9.70 mm | |
| PL L10X/0.25 BD WD:9.30 mm | ||
| PL L20X/0.40 BD WD:7.23mm | ||
| PL L50X/0.70 BD WD:2.50 mm | ||
| Eyepiece tube | 45? inclined, interpupillary distance 53~75mm. | |
| Focus system | Coaxial coarse/fine focus, with tension adjustable￡?minimum division of fine focusing 2μm. | |
| Nosepiece | Quintuple (Fixed nosepiece with backward inclined) | |
| Stage | Mechanical stage overall size: 242mmX200mm, moving range : 30mm*30mm. | |
| Rotundity and rotatable stage size: maximal external diameter is Ф130mm and minimal clear aperture is less then Ф12mm. | ||
| Illumination system | 6V30W halogen and brightness adjustable (MJ42) | |
| 12V50W halogen and brightness adjustable ( MJ42BD) | ||
| Built-in field diaphragm , aperture diaphragm and puller type polarizer. | ||
| Equipped with frosted glass and yellow ,green and blue filters | ||
