Fluorescence microscope MF23
USD $1
≥1 Set
- 0 Set / Sets per Month
- T/T PayPal
You May Like
Product Description

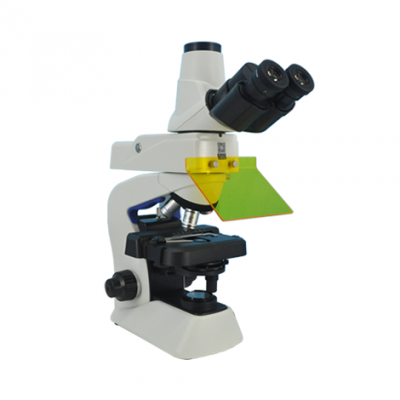

Fluorescence biological microscope MF23 takes use of Olympus CX23 biological microscope as main body, and MSHOT self designed LED fluorescence attachment come into being a favorable epi-fluorescence microscope for lab working. Working with trinocular head the microscope is ideal for both of eyepiece view and photography on PC. The microscope is popular sued at clinical centers and university labs, used to observe cells, tissues, bacteria of bright field and immunofluorescence observation methods.
Feature
Features:
■Olympus CX23 body and lens, high quality
■Cost effective with trinocular observation head of triple beam split 0/50%/100%
■Modular fluorescence attachment of various of LED light source and fluorescence filters
■Can choose digital screen to show and remember fluorescence light intensity
■Cost effective with trinocular observation head of triple beam split 0/50%/100%
■Modular fluorescence attachment of various of LED light source and fluorescence filters
■Can choose digital screen to show and remember fluorescence light intensity
LED Fluorescence attachment:
LED fluorescence attachment features with built-in color LEDs as light source. Providing friendly fluorescence upgrade solution for basic fluorescence microscope users. By the modular illumination you can easily upgrade a traditional infinity upright biological microscope to fluorescence functional. It is compatible with laboratory microscopes Olympus, Nikon, Leica, Zeiss and others.
Applications:
■Botany
■Education
■Clinical
■Tuberculosis sputum slide quick diagnose
■Skin and foot fungus diagnose
■Respiratory disease diagnose
■Water quality detection
■Food safety control
■Coating material analysis
■Education
■Clinical
■Tuberculosis sputum slide quick diagnose
■Skin and foot fungus diagnose
■Respiratory disease diagnose
■Water quality detection
■Food safety control
■Coating material analysis
■Various of fluorescence dyes
Specification
| Items | Specification |
| Optical system | Infinity optical system |
| Eyepiece | Wide field WF10X/FN:20mm (anti-fungus) |
| Observation head | Trinocular head with triple light split 0 / 50% /100% |
| Objectives | Infinity plan achromat 4X/0.10, working distance 27.8mm |
| Infinity plan achromat 10X/0.25,working distance 8.0mm | |
| Infinity plan achromat 40X/0.65,working distance 0.60mm | |
| Infinity plan achromat 100X/1.25(spring), working distance 0.13mm | |
| Focusing system | Fine and coarse adjustment with tension and limited stopper, minimu adjustment gradations:2.5um,coarse movement stroke:15mm |
| Nosepiece | Quadruple fixed nosepiece |
| Stage | Wire movement mechanical fixed stage, size 120mmx132mm, travelling range 76mmx30mm |
| Single specimen holder | |
| Condenser | Abbe condenser, NA 1.25 (with immersion oil), inter set aperture diaphragm |
| Fluorescence illumination | LED fluorescence illuminator |
| 3W LED | |
| Blue excitation: EX460~490nm, DM>500nm, EM>510nm | |
| Transmitted illumination | Built-in transmitted illumination system, LED power Consumption 0.5W(nominal values) |
| Optional: 6V 20W halogen lamp | |
| Power source | AC, 100-240V, 50~60Hz |
