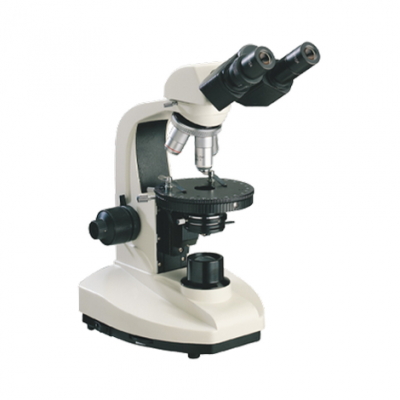

Simple polarizing microscope MP20
USD $1
≥1 Set
- T/T PayPal
You May Like
-
Bright field & dark field metallurgical microscope MJ33
-
Inverted metallurgical microscope MJ42
-
Research-level upright fluorescence microscope MF43-N
-
Inverted fluorescence microscope MF53-N
-
Scientific grade stereo-fluorescence microscope MZX81
-
Routine biological microscope with trinocular observation tube ML31
Product Description
MP20 Polarizing Microscope is a kind of essential instrument for studying and identifying the materials with double refraction characteristics, by using polarizing feature. This microscope is widely used in many fields, such as observation of crystalline inclusions, muscle tissue, nerve tissue, plant fiber and other structural details of the teeth, bone, and living cells, as well as analysis of drug composition and properties. Furthermore, in the field of inorganic chemistry, the fine structure of crystallization conditions of various kinds of salts which cannot be seen in natural light can be observation through polarizing microscope.
Feature
Clear image:
Equipped with wide-field eyepieces and achromatic objectives, the field of view is large and clear.
Coarse and fine focusing, limit locking:
Coaxial coarse and fine motion focusing mechanism, adjustable coarse and tight motion, with limit locking device.
Halogen transillumination, adjustable brightness:
Halogen lamp transmitted lighting, brightness adjustable.
Specification
| Items | Specification |
| Eyepiece | Wide field WF10X(Φ18mm) |
| Objective | Achromatic objective 4X/0.10 |
| Achromatic objective 10X/0.25 | |
| Achromatic objective 40X/0.65 (Spring) | |
| Achromatic objective 100X/1.25(Spring, oil) | |
| Observation tube | Binocular, inclined 30° |
| Analyzer | Sliding |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper,minimum graduation in fine movement is 2μm |
| Nosepiece | Quadruple (Backward ball bearing inner locating) |
| Stage | Rotatable stage (Diameter:Φ120mm) |
| Abbe condenser | NA.1.25 Rack & pinion vertical adjustable |
| Filter | Blue filter |
| Frosted glass | |
| Polarizer | 360° rotatable |
| Analyzer | Push-pull |
| Illumination unit | 6V 20w, halogen bulb, brightness adjustable |
