Stereo-fluorescence microscope MZX100
US$ 1
≥1 Sets
- T/T PayPal
You May Like
Product Description
Description

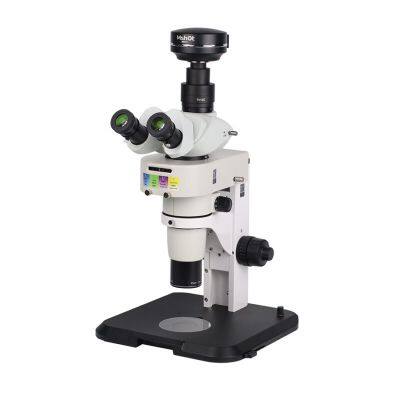

MZX100 is an infinity optical stereofluorescence microscope with a large zoom range. It adopts high-quality Galilean parallel dual-light path design, with high resolution and true colors. It has rich accessory options, a zoom ratio of 1:10, and is ergonomically designed. It is an ideal choice for conventional biomedicine, fishery, animal husbandry, agriculture and forestry, industrial testing and scientific research.
Feature
Large zoom ratio:
■Zoom ratio up to 1:10, flexible and detailed observation.
■Infinite parallel dual optical paths, strong scalability.
■Optional variable-angle binocular head for more comfortable use.
■Infinite parallel dual optical paths, strong scalability.
■Optional variable-angle binocular head for more comfortable use.
Strong scalability:
■A spectroscope can be installed to connect to the microscope camera.
■Optional 0.5X objective lens to achieve long working distance.
■Optional 0.5X objective lens to achieve long working distance.
Fluorescence illuminating of LED light:
■Modular designed fluorescence attachment eliminates extra lamp house and power supply, easy to use and maintain.
■Cold LED lighting greatly reduces the damage of heat conduction to living specimens.
■Cold LED lighting greatly reduces the damage of heat conduction to living specimens.
■Excitation wavelength 380nm-420nm, 460nm-490nm,510nm-550nm, 540nm-580nm are optional.
Specification
| Parts | Specification | Standard | Optional |
| Eyepiece | High eyepoint wide field of eyepiece, diopter is adjustable WF10X | ? | |
| WF15X/WF20X Reticle eyepieces (different magnifications) | ? | ||
| Observation tube | Binocular, adjustable interpupillary distance | ? | |
| Variable angle binocular head | ? | ||
| Olympus trinocular head | ? | ||
| Splitter | L type, switchable beam splitte | ? | |
| Fluorescent Attachment | U | ? | |
| B | ? | ||
| G | ? | ||
| Zoom range | 0.8X-8X | ? | |
| Objectives | 1X Large plan objective lens | ? | |
| 0.5X Achromatic Objectives（Double objective lens switching optional） | ? | ||
| Base | Column type transmission plate base, vertical arm adjustment | ? | |
| Adjustable angle transmission base (optional, suitable for observing transparent samples) | ? | ||
| Focus bracket | Focusing lens frame, adjustable focus hand whee | ? | |
| Work board | Clear glass work board | ? | |
| Lighting system | Up/down LED light source lighting | ? | |
| Camera adapter | 0.5X C-mount adapter | ? | |
| 1X C-mount adapter | ? |
