Product Details
| Place of Origin | Guangxi, China | Brand Name | XiaShi | |
| Model Number | FY815-JC | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

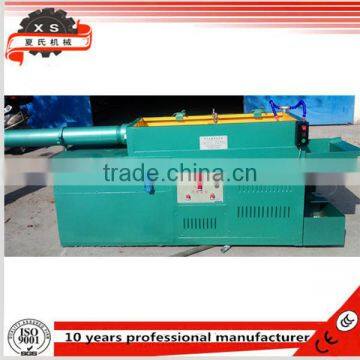

FY815-JC Horizontal internal broaching machines,broaching machine For Sale
Introduction
This machine adopts the principle of hydraulic transmission, through usIing the fluid pressure energy to transfer thedynamic,and atopt action elementto transfer liquid pressure energy into mechanical energy, which drives the workpiece cutting broach. Broaching is stable, can be stepless speed regulation, rapid return to help you improve production efficiency. Handle control can operate through half cycle or whole cycle . The track after high frequency annealing the coated hard layer, it is difficult to wear, than the average service life of the machine tool was increased several fold. The use of simple repair, particularly suitable for mass production. Has the advantages of high precision, high efficiency, low noise etc. direct manufacturers absolute low price affordable.
Main uses: irregular holes machining hole, slot, involute, square hole, six angle hole, spline, half round, and other various geometries.
Technical parameters
Model | FY815-JC | FY820-A | FY820-JC |
Rated tension | 150KN | 200KN | 200KN |
Broaching stroke | 1500mm | 1550mm | 1700mm |
Motor power | 5.5kw | 7.5kw | 7.5kw |
Worktable pore diameter | 100mm | 120mm | 120mm |
Boraching speed | 18-20min/m | 20-25min/m | 20-27min/m |
Return speed | 5-7min/m | 8-10min/m | 8-10min/m |
Machine weight | 1600kg | 2000kg | 2300kg |
Machine overal dimension (L*W*H) | 4120*450*900mm | 4200*450*910mm | 4500*500*910mm |
Picture details
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
