L5710C pull broaching machine

FOB Price

US$ 1,500 - 2,000 / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	xiashi
Model Number	L5710C	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Introduction

As for the type L5710C and L5720C Upward Internal Broaching Mchine,the working direction is upward form underside eliminating the impact and quake induced by the downward broaching force and downward force of cargo chute and cutters to improve the processing quality.Since the working direction is upward from underside,the working surface is rather low not being necessary to make the silo .The machine is suitable for the broaching holes with various geometric shapes(I.E.gear spline hole,gear tri-slot,etc.);it is also suitable for the large-scale production and batch production because of the high production effciency .The machine is driven by hydraulic pressure with stable working performace,stepless speed regulation and overlonading safety device .the machine has the automatic cycle system,which the main operation can be inched individually.Meanwhile,the machine is controlled by the general button station with convenien

Specifications

vertical Internal Broaching Machine
working direction: upward from underside
suitable for various geometric shapes

Technical parameters

MODELS	L5710C	unit
Rated pulling capacity×Max.culling	100×1200	KN×mm
Cutting speed (stepless)	2-8	m/min
Return speed (stepless)	2-17	m/min
Max.stroke of table	520	mm
Size of working plane on table(W×L)	320×360	mm
Distance from bottom of bed to upper plane of table	1200	mm
Delivery	200	L/min
ing pressure	10	Mpa
Total capacity of motors	20	kw
Main motor	15	kw
overall dimensions(L×W×H)	3260×3183×4000	mm
Net wight(Approx.)	12500	kg

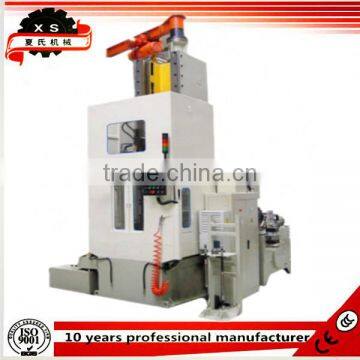

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
