Home > Products > Slotting machine and Broaching machine > L5110A Vertical internal broaching machines,broaching tools for sale
L5110A Vertical internal broaching machines,broaching tools for sale
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
L5540 Vertical internal broaching machines,broaching machine,broaching tools with low price
-
L710B hydraulic external vertical broaching machine plane and shape
-
L720B vertical external broaching machine
-
L5105 type small tonnage vertical internal broaching
-
2017 hot sale hydraulic hole slotting punching machine high quality BY5032E BY5040E
-
2017 hot sale hydraulic hole vertical planer slotting metal cutting machine BY5032E BY5040E
Product Details
| Place of Origin | Guangxi, China | Brand Name | xiashi | |
| Model Number | L5110A | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

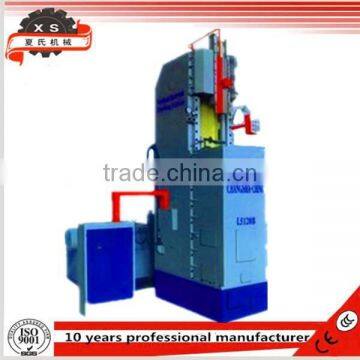

L5110A Vertical internal broaching machines,broaching tools for sale
Introduction
The machine is used to broach various geometries through holes, high production efficiency,
suitable for batch production and mass production.
This machine adopts hydraulic transmission, smooth, stepless speed, and overload safety deviceWorktable is fixed, there is escorted knife device can be used for automatic cycle, semi-circle,
segmented circular (Ⅰ, Ⅱ) and adjusted in five different sports, able to adapt to the needs of
the different forms of broaching.
Technical parameter
Model | L5110A |
Rated tension (KN) | 100 |
Max. Stroke (mm) | 1000 |
Work stroke speed(stepless speed regulation )(m/min) | 2-7 |
Returned stroke speed(stepless speed regulation )(m/min) | 13-20 |
Displacement (L/min) | 30-200 |
Table surface size (mm) | 450×450 |
Table pore size(mm) | φ150 |
Face Chuck pore size(mm) | φ100 |
Distance between table surface and lathe bed base surface(mm) | 1670 |
Distance between Auxiliary toolholder holder end face and table surface | 725-1415 |
Main Drive Radial Piston Pump |
|
Max working pressure (mpa) | 10 |
Main motor power (KW) | 17.12 |
Overall dimensions(L×W×H)(mm) | 3312×1343×3233 |
Net wight(Approx.) (KG) | 5000 |
Verticality of rear aoerture central line of test piece broaching to basic surface(mm) | 0.06/200 |
Surface roughness of test piece broaching(Ra) | 6.3 ~1.6 |
Detailed pictures for your reference
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
