B5032 slotting length 320mm CNC hydraulic slotting machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Place of Origin	Zhejiang, China
Model Number	BY5032E BY5040E	Voltage	380V/220V Optional
Power(W)	5.5kw	Weight	2900kg
Dimension(LWH)	2624x1405x2505mm	Certification	CE ISO
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

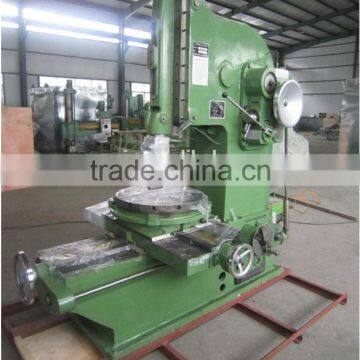

B5032 slotting length 350mm CNC hydraulic slotting machine

Feature :

Machinery for slotting machine, workpiece, molding surfaces, suitable for single and small batch production.

The main structure and characteristics of machine tools:

The machine consists of bed, ram, workbench, feed box, gear box, electrical and other major parts.

The bed is composed of two parts, the upper part of the bed in front of a ram, a carriage and a rocking handle mechanism, its bottom is cast a separator as lubricating oil tank. The plunger oil pump, oil separator, oil to ram guide etc., open bed cover can see in front of the fuel level oiling, oil standard, the lower bed above the dovetail guide for table longitudinal movement of the rear, inside the motor, while the rear is arranged on the right side of the feed box.

The utility model relates to a sliding handle mechanism of a pillow, which is a rotary motion of a rocking handle gear. According to the height, the ram can be 215mm within the scope of adjustment, the adjustment can disengage the ram in front of the nut, then twist the bevel gear with square head, you can get the vertical displacement of the ram, to meet the requirements, will tighten the nut.

The ram in the return stroke, rotary knife cutter with cone pin chuck around the bottom right, to protect the cutting edge.

The handwheel on the gearbox can be moved by hand to get the vertical movement of the ram.

Specification :

Model	B5032
Max.slotting length	320mm
Max.dimension of work piece (LXH)	600x320mm
Max.weight of work piece	500kg
Max.Cutting force	750kg
No.of ram strokes per minute	20,32,50,80
Vertical adjustment of ram	315m
Inclination of ram	0-8°
Distance between tool holding surface and column front	600mm
Max.tool shank size (WXH)	25x40mm
Table diameter	630mm
Distance between table surface and low end of ram	490mm
Max.longitudinal travel of table	630mm
Max.Cross travel of table	560mm
Range of of table longitudinal and cross power feeds	0.08-1.21mm
Range of table rotary power feeds	0.052°-0.783°
Power of main drive motor	4kW /960RPM
Over dimension	2261x1496x2245mm
Weight	3000kgs
