Home > Products > Slotting machine and Broaching machine > Slotting Machine B5020

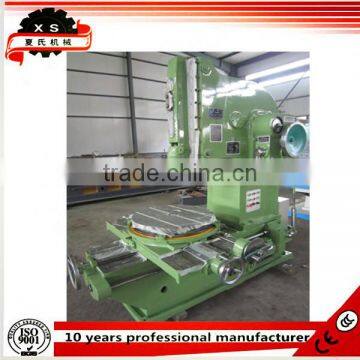

Slotting Machine B5020
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
L51 series of large tonnage vertical broaching machine L5110B
-
L5710C pull broaching machine
-
L5140B series of large tonnage vertical broaching machine
-
High Precision Vertical Slotting Machine BC5050,slotting machine for mental low price
-
vertical slotting machine B50100
-
FY-805A Horizontal internal broaching machine
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | xiashi | Model Number | B5020 | |
| Voltage | 380v | Power(W) | 3kw | |
| Dimension(L*W*H) | 1916*1305*1995mm | Weight | 2000kg | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.max slotting length:320mm
2.max dimension of workpiece:600X320mm
3.max.weight of workpiece:500kgs
Technical parameters
Model | B5020 | B5032 |
Max.slotting length | 200mm | 320mm |
Max.dimension of workpiece (LXH) | 485x200mm | 600x320mm |
Max.weight of workpeice | 400kg | 500kg |
Max.Cutting force | 550kg | 750kg |
No.of ram strokes per minute | 32,50,80,125 | 20,32,50,80 |
Vertical adjustment of ram | 230mm | 315m |
Inclinatoin of ram | 0-8° | 0-8° |
Distance between tool holding surface and column front | 485mm | 600mm |
Max.tool shank size (WXH) | 25x40mm | 25x40mm |
Table diameter | 500mm | 630mm |
Distance between table surface and low end of ram | 320mm | 490mm |
Max.longitudinal travel of table | 500mm | 630mm |
Max.Cross travel of table | 500mm | 560mm |
Range of of table longitudinal and cross power feeds | 0.08-1.21mm | 0.08-1.21mm |
Range of table rotary power feeds | 0.052°-0.783° | 0.052°-0.783° |
Power of main drive motor | 3KW /1430 RPM | 4kW /960RPM |
Over dimension | 1916X1305X1995mm | 2261X1496X2245mm |
Weight | 2000kgs | 3000kgs |
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
