Home > Products > Milling and drilling machine > XK6132 CNC Milling Machine for worm
XK6132 CNC Milling Machine for worm
- shenzhen
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Model Number | XK6132 | Type | Universal | |
| CNC or Not | CNC | Voltage | 380V | |
| Power(W) | 5.5kw | Dimension(L*W*H) | 2245*1780*1920 mm | |
| Weight | 3100kg | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main features
1.Auto feeding horizontal milling machine
2.Automatic feed on three axes
3.Table swivel +/-45 degrees
4.Rectangular guideway
Technical parameter
Worktable size(Width*Length) | 320*1320 mm |
T slot number* width* distance | 3*18* 80 mm |
Max. longitudinal travel of worktable | 700 mm |
Max. cross travel of worktable | 300 mm |
Max. vertical travel of worktable | 280 mm |
Spindle taper | 7:24(No. 50) |
Arbor diameter | φ22, φ27,φ32 |
Spindle speed steps | 18 steps |
Spindle speed range | 30~1500 r/min |
Main motor power | 7.5 Kw |
Main motor rotating speed | 960 r/min |
Cutting feed speed | 5~1000 mm/min |
Rapid feed speed | X, Y, Z: 4000,3000,2000 mm/min |
Cooling pump power | 0.12 Kw |
Cooling pump rotating speed | 2760 r/min |
Positioning precision | 0.025/300 mm |
Re-positioning precision | 0.015 mm |
Machine dimension (L*W*H) | 2245*1780*1920 mm |
Packing size (L*W*H) | 2400*1700*2040 mm |
Net machine weight | 3100 kg |
Digital system | GSK 990 MA |

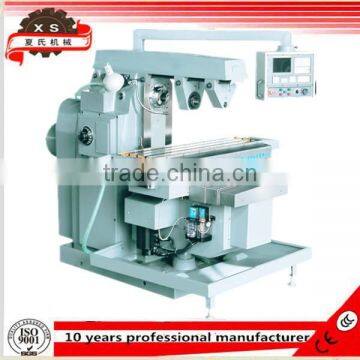

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
