Product Details
| Place of Origin | Guangxi, China | |||
| Brand Name | xiashi | Model Number | HD-1225 | |
| Voltage | 220±10% | Rated Power | 220W | |
| Dimension(L*W*H) | 3000*273*60 | Weight | 130KG | |
| Certification | ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dependable Performance HD-1225 cnc flame cutting machine,portable cnc plasma cutting machine For Sale
Features:
This machine with a large gantry CNC cutting machine, like any complex parts can be cut.
Host vertical and horizontal rails are made of imported dual-axis precision linear guide, linear degrees, and walking stability, high accuracy.
Can cut any complex plane figure, for better oxygen gas flame cutting, plasma cutting machine, free moving, does not occupy a fixed site.
Affordable, practical and suitable for self-employed, small-scale manufacturing and light industrial machinery and other industries.
Technical Parameters
HD Portable NC Flame/Plasma Cutting Machine | ||||
Model | HD-1020 | HD-1225 | HD-1530 | HD-1560 |
Power source | 220±10%VAC 50/60Hz 220W | |||
Cutting mode | O2/C3H8or C2H2, Plasma available | |||
Effective cutting range(mm) | 1000×2000 | 1200×2500 | 1500×3000 | 1500×6000 |
Track L×W×H(mm) | 2500×273×60 | 3000×273×60 | 3500×273×60 | 7000×273×60 |
Track Holder Quantity | 2 | 3 | 3 | 6 |
Track Holder L×W×H(mm) | 500×80×40 | |||
Cutting speed(mm/min) | 0-3500 (Max 4000 available) | |||
Cutting thickness(Flame)(mm) | 5-150(O2/C3H8or C2H2) | |||
Cutting thickness(Plasma)(mm) | In terms of plasma power source | |||
Move precision | ±0.2mm/m | |||
Torch | Flame,electric height adjustment(±60mm) | |||
Host weight(kg) | 19 | |||
Total weight(kg) | 120 | 130 | 140 | 220 |
Gas pressure(Mpa) | Max0.1 | |||
Oxygen pressure(Mpa) | Max0.7 | |||
Type of gas | Propane, Ethine | |||
Emergency stop | Yes | |||
Working temperature | -5~45℃ | |||
Relative humidity | <95% No condensing | |||
Standard configuration is 2#propane cutting nozzle if no special requirement. | ||||
Tailor-made track if request. | ||||

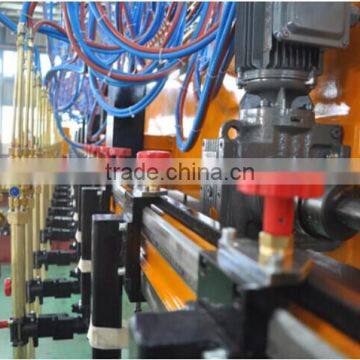

Detailed pictures for your reference
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
