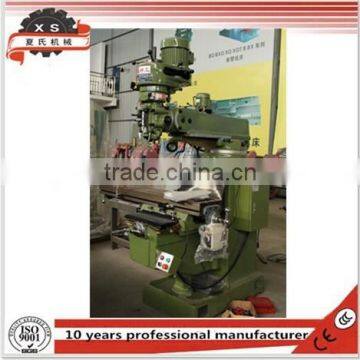

Universal rotary head Milling Machine for sale, universal vertical milling machine X6330

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	XiaShi	Model Number	X6330
Type	Universal	CNC or Not	Normal
Voltage	220v	Power(W)	3.7kw
Dimension(LWH)	170015202260	Weight	1750/1950kg
Certification	ISO9001,CE,3C	Warranty	1Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Universal rotary head MillingMachine X6330 Specification:

Rectangular guideway is adopted both on Y-and Z-axis

Adopted strengthen ribon both sides of the column,that makes the machine rigid and beautiful
The worktable surface and 3 axis guide way are hardened and precision ground
Z axis adopt high speed lifting motor
5HP milling head motor and quill diameter is 100mm

Item	Parameter
Table size	305*1370mm
Worktable travelX/Y/Z	870/380/430mm
Spindle taper	R8/ISO40
Auto quill feed	3 steps:0.04/0.08/0.15mm/rev
T-slot No. and size	3*16mm
Head swivel	90°
Head tilt left right	45°
Spindle travel	127mm
Rom travel	500mm
Spindle nose to worktable	450mm
Spindle speed(option)	6steps:60Hz 80~5440rmp 50Hz 65~4500rmp
Motor(option)	3.75kw
N.W/G.W	1550/1700KG
Packing size(LWH,enclude foot and pan)	156616502080mm

Standard Accessories	Optional
Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun	oil pan+plastic splash guard ,Cooling system , table power feed system ,DRO ,collet chunk , vices ,milling clamp
