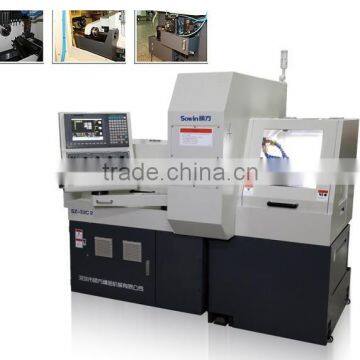

SZ-26C/SZ-32C series Swiss CNC Precision Automatic Bar Lathe

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Automatic Grade	Automatic	Model Number	SZ-26C
Voltage	380v/50Hz	Power(W)	5.5kw
Dimension(LWH)	220015101780mm	Weight	2300kg
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Introduction

SZ-32C series machine tool belongs to Swiss high-speed high-precision CNC directory and feeding dual-purpose turning-milling combined lathe (exchangeable guide sleeve and guide sleeve-free modes according to customer requirements).

This product integrates guide sleeve and guide sleeve-free modes, realizing multipurpose design. The machine tool carries out the most appropriate machining according to customer requirements on products; in the guide sleeve structure (directory), it is equipped with an integral splined shaft synchronous rotation device and a total-travel synchronous rotation guide sleeve, 320mm materials can be fed by one-time clamping; in a guide sleeve-free structure (feeding), it is convenient to dismount, does not need material grinding in the machining process, and can machine cold drawn bars at high speed and high accuracy. The spindle is an integrated built-in electric spindle of which the rotation power head is equipped with an oil cooling device.

It can be widely applied to the combined machining of slender-shaft parts and precision parts in automobiles, electronic communication, faxes, printers, medical instruments, home appliances, lockmaking and other industries.

Features

26C/32C series: standard configuration, six 16*16 turning tools, three ER16 side milling power heads, one ER20 side milling power head, five ER16 fixed cutting tools

26C/32C series: high-level configuration, six 16*16 turning tools, three ER16 side milling power heads, one ER20 side milling power head, three ER16 cross section milling power heads, three ER16 fixed cutting tools, applicability for machining eccentric holes

Technical Parameters

	Items	SZ-26C2/SZ32C2	SZ-26C3/SZ32C3
Machining Range	Bar clamping diameter of spindle mm	Φ8~Φ32mm	Φ8~Φ32mm
	Max clamping diameter of back shaft	320mm
	Max drilling diameter of spindle	Φ10mm
	Max tapping diameter of spindle	M8
	Max drilling depth of spindle	65mm
	Max drilling diameter of side milling power head	Φ12mm
Spindle	Spindle speed	100~7000rpm/min
	Spindle indexing	C-axi:0.001°
	Spindle through-hole diameter	Φ33mm
Cutting Tool	Row tool quantity(1616150)	6
	Side milling rotary driven tool	1×ER16+3×ER16
	Side milling power head speed range	100~6000rpm/min
	End milling power rotary tool		3×ER16
	End milling power head speed range		100~6000rpm/min
	End face of the fixed knife		3×ER16
Motor	Built-in electric spindle power	5.5KW
	Rated power of X1-axis servo motor	0.75KW
	Rated power of Y, Z-axis servo motor	1KW
	Rated power of side milling power head	0.75KW
	End milling power head rated power	0.35KW
	Cooling oil pump power	0.18KW
	Lubricating oil pump power	25W
System	System Model	21TB
	Controllable/compounding axis number	6/4
	Min unit	0.001mm
	Fast reading movement speed	32m/min(X-axi 20m/min)
	Program storage capacity	1GB
	Stored program number	8.0" Color screen

Others
	Receiving device	Long and short pieces catcher
	Power capacity	11KVA
	Spindle center height	985mm
	Machine tool dimensions (LWH)	220015101780mm
	Cutting fuel tank volume	145L
	Air pressure	Above 0.4MPa
	Machine tool net weight	2300KG

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
