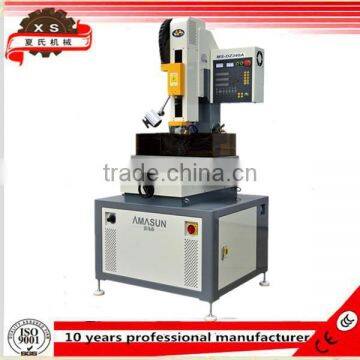

MS-DZ340A High Speed Small Hole EDM Drilling Machine
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
MS-DZ340 series High Speed Small Hole EDM Drilling Machine
-
CNC horizontal milling machine miller XK6325B
-
XQ6226A Windows Automatic Aluminum End Milling Machine
-
High Speed Small Hole Drilling EDM [BMD703-500]
-
Universal rotary head Milling Machine for sale, universal vertical milling machine X6330
-
SZ-26C/SZ-32C series Swiss CNC Precision Automatic Bar Lathe
Product Details
| Condition | New | CNC or Not | CNC | |
| Drilling Speed | 2200 | Place of Origin | Jiangsu, China | |
| Brand Name | Yama Sen | Model Number | MS-DZ340A | |
| Voltage | 380V/50HZ | Power(W) | 4.5KW | |
| Dimension(L*W*H) | 1000*1000*1900mm | Weight | 890kg | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Feature
Z axis travel 380mm, which can clamp the 500mm electrode, which greatly improves the use rate of the electrode tube
Quick lifting of the Z axis, just 10 seconds the whole travel, the second travel adopt electric lift
Operating system independent R & D, one touch operation is more humanized, depth function, points, fixed end function
Patent rotating head, with wear-resistant ceramic piece, first one integrated design of motor
rotating head
Application
Mainly used for processing unmanageable deep pinhole such as threading hole,
drilling hole on ultra-hard conducting material for wire cutting on, nozzle opening of oil pump,
spinneret orifice of spinning die, oil way of hydropneumatic components and cooling hole of engine
Technical parameter
Type | Name | MS-DZ340 | ||
A | B | D | ||
1 | electrode diameter (mm) | Φ0.2-Φ3.0 | Φ0.3-Φ3.0 | Φ0.3-Φ3.0 |
2 | Spindie travel (mm) U-axis | 280 | 280 | 280 |
3 | Z-axis servo travel(mm) Z-axis | 380 | 380 | 380 |
5 | Max. spindle speed adjustment(mm/min) | 2200 | 800 | 2000 |
6 | Rotating head (C-axis)speed(rpm) | 0-500 (adjustable) | 0-500 | 0-500 |
7 | Worktable size(mm) | 320*440 | 320*440 | 320*440 |
8 | X*Y travel(mm) | 300*400 | 300*400 | 300*400 |
9 | The between guider & work table(mm) | 320 | 320 | 320 |
10 | Max.output current(A) | 40 | 40 | 40 |
11 | Max.input power(KW) | 4.5 | 4.5 | 4.5 |
12 | Voltage / frequency(V/HZ) | 380/50 | 380/50 | 380/50 |
13 | Digital display mode | three axis | two axis | three axis |
15 | Pump operating pressure(Mpa) | 12 | 8 | 8 |
16 | Max. workpiece weight(Kg) | 300 | 300 | 300 |
17 | Overall dimensions(W*L*H) | 1000*1000*1900 | 1000*1000*1900 | 1000*1000*1900 |
18 | Machine weight(kg) | 850 | 800 | 800 |
Detailed pictures for your reference
More pictures for you reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
